Product Overview

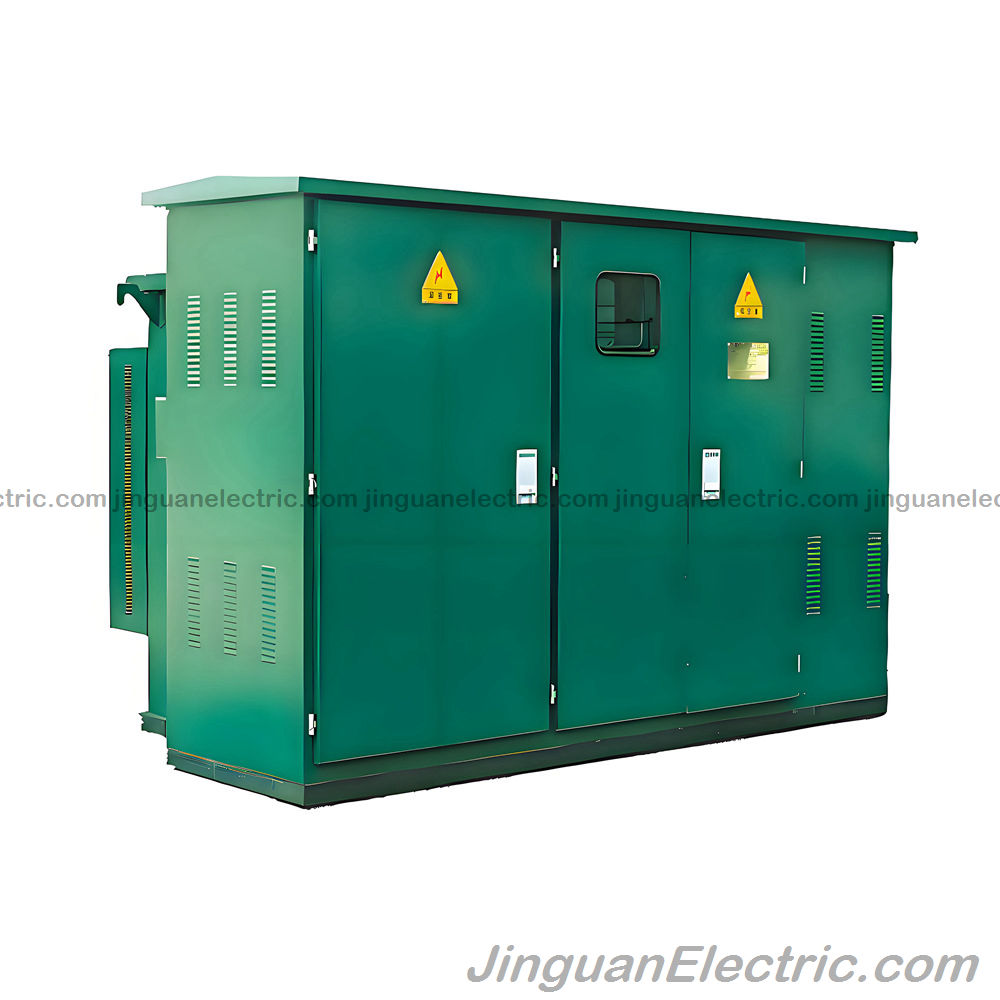

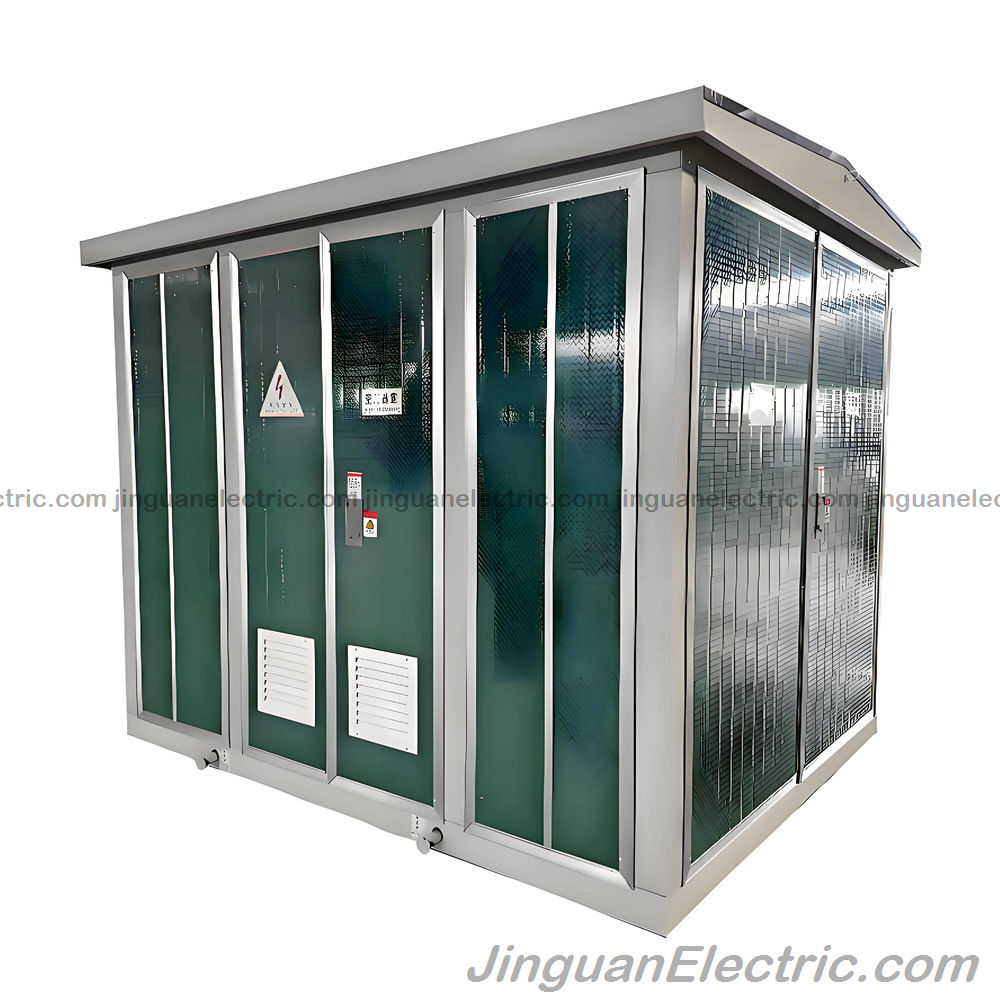

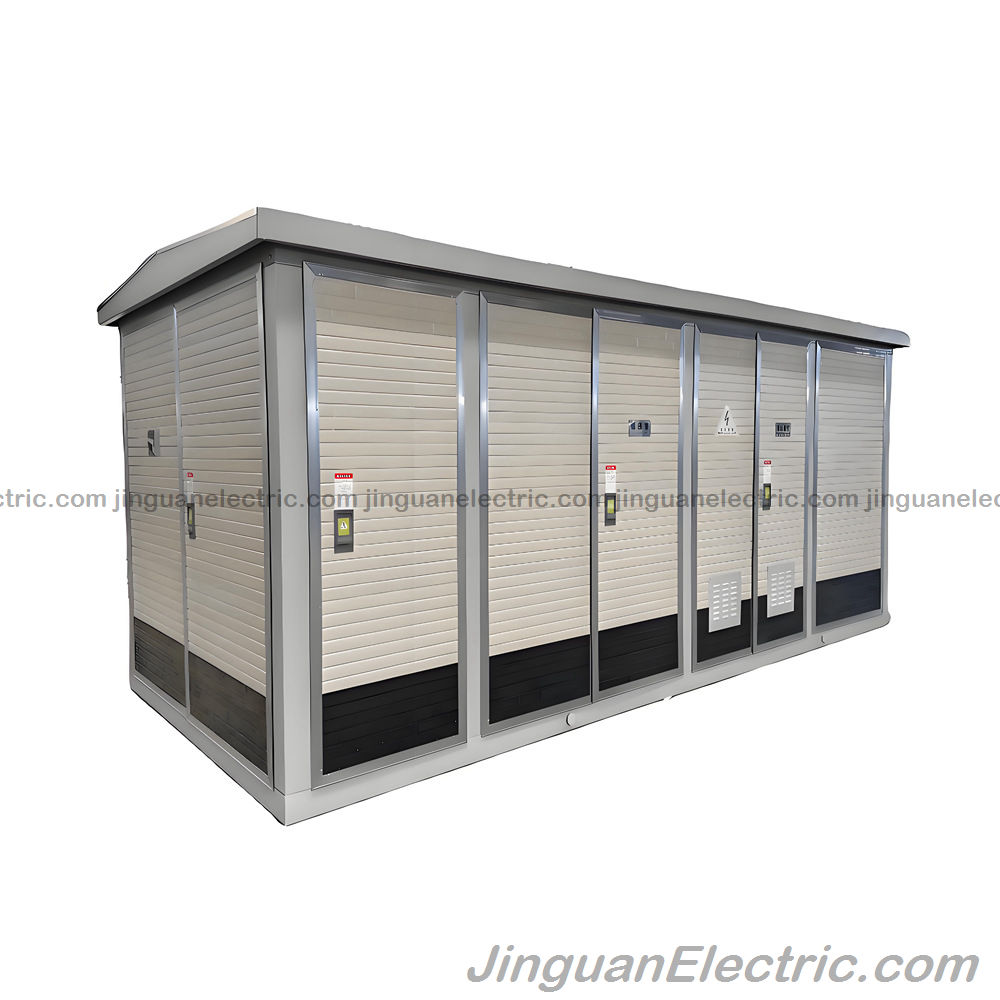

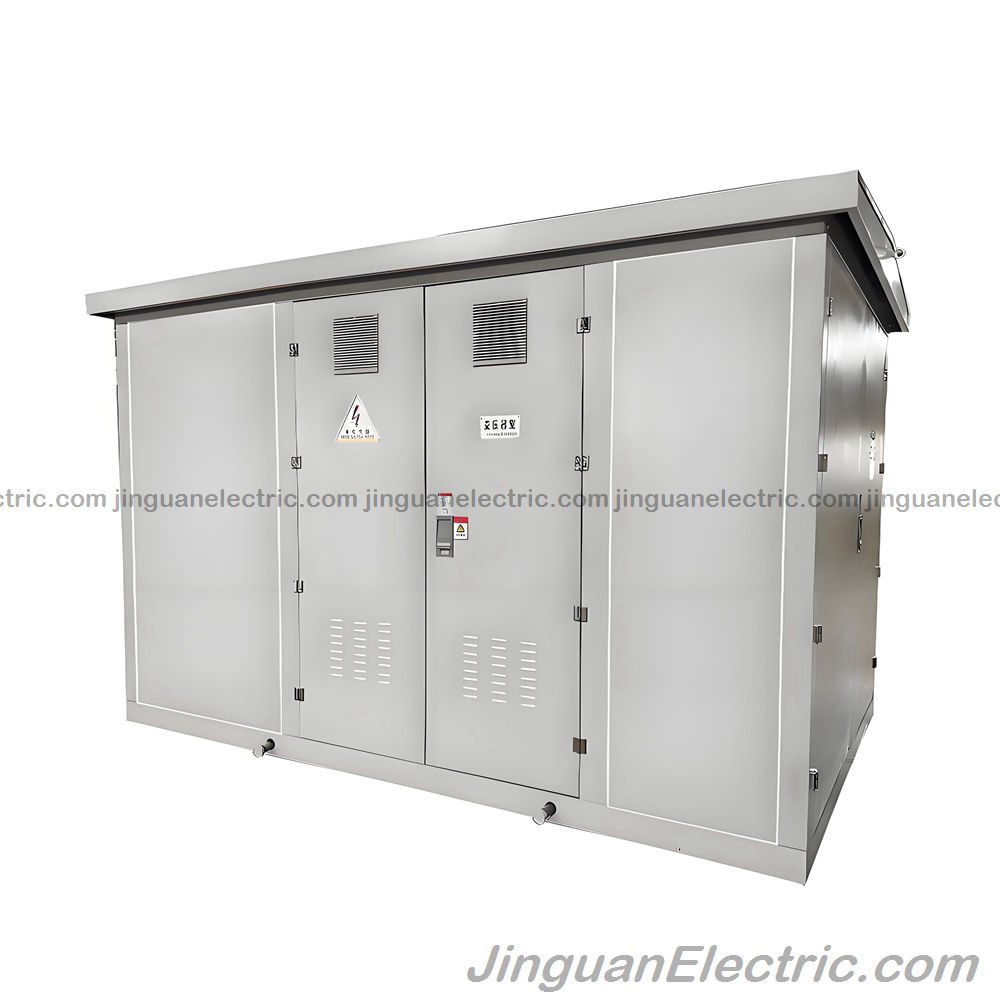

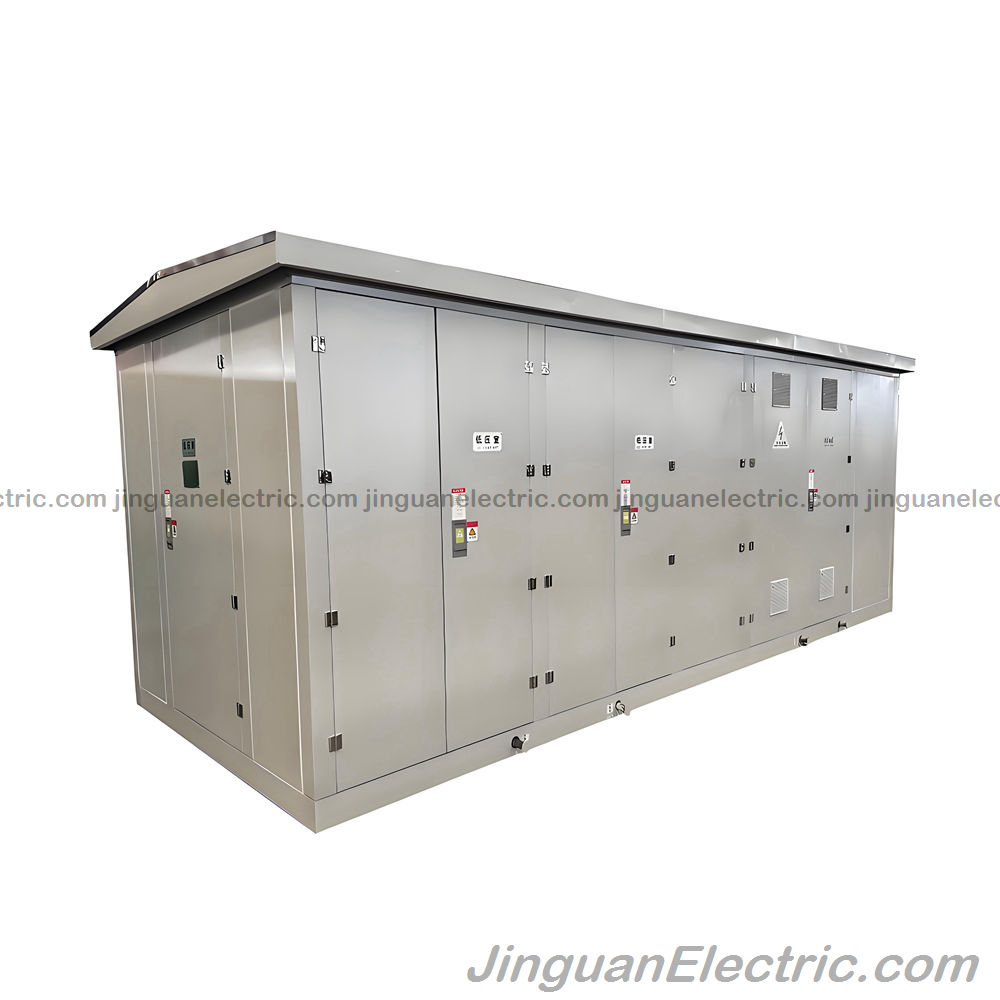

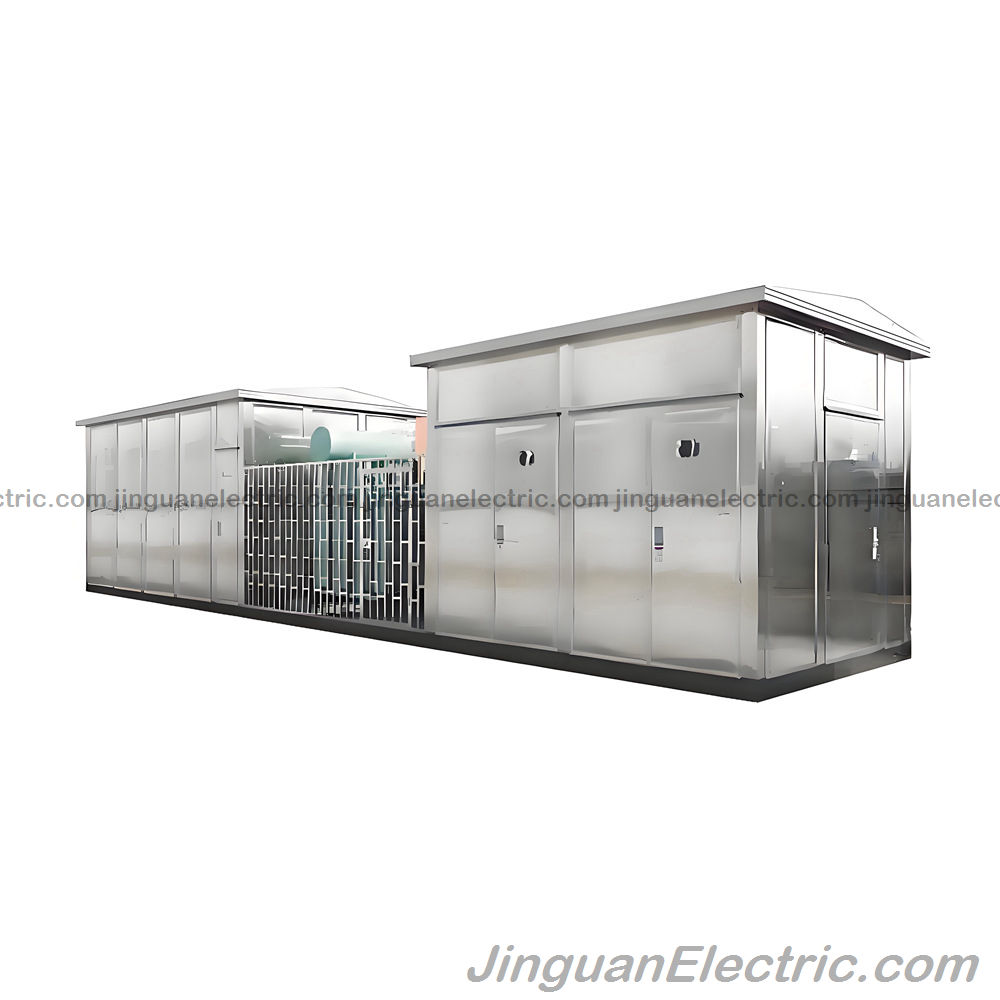

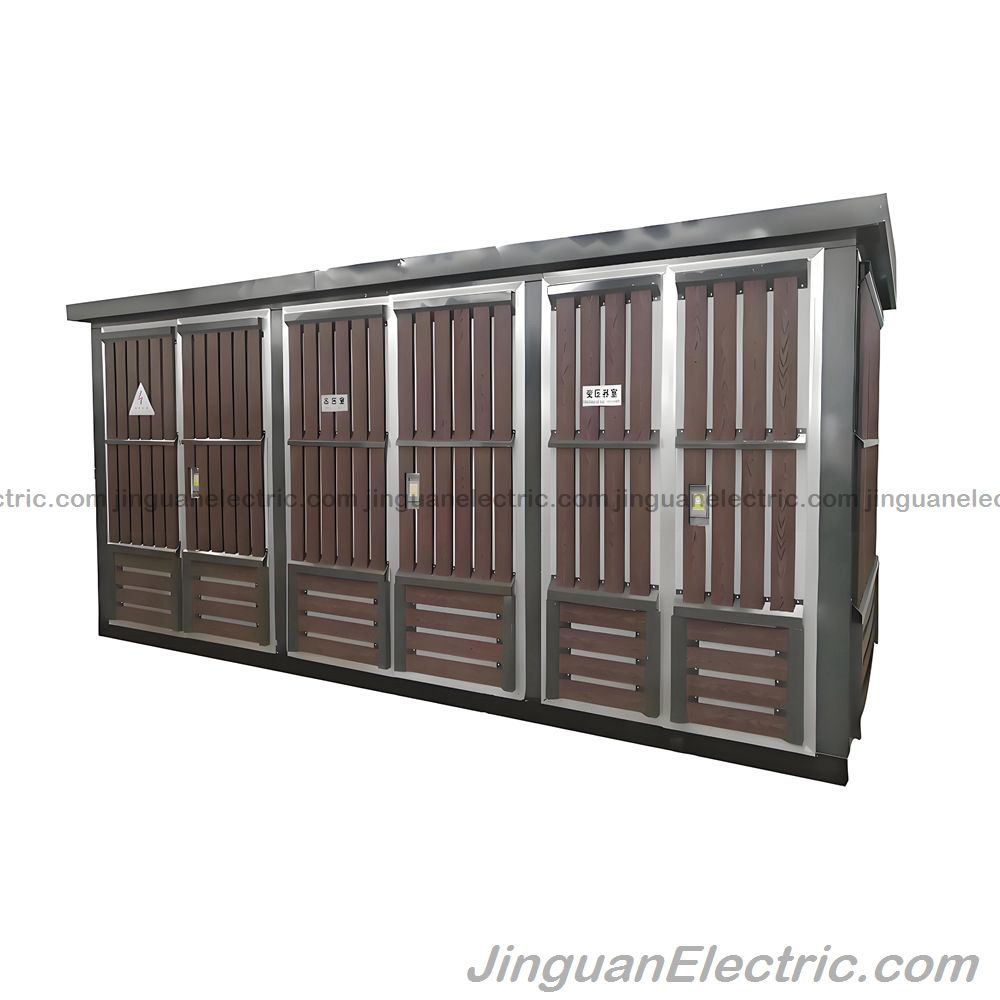

TiraThai, a specialized sub-brand of Jinguan Electric dedicated to transformer and electrical equipment innovations, proudly introduces the YB-12 Series Outdoor Combined Box-Type Substation (European). This prefabricated, modular unit integrates high-voltage electrical equipment, transformers, and low-voltage devices into a compact, factory-assembled enclosure, serving as a complete power distribution solution for urban high-rise buildings, mines, oil fields, temporary construction sites, and other locations requiring reliable electricity reception and distribution. With a strong complete set, small size, compact structure, safe and reliable operation, convenient maintenance, and mobility, the YB-12 series drastically reduces the floor area to 1/10-1/15 of conventional substations for the same capacity, significantly cutting design workload, construction volume, and costs.
Jinguan Electric, founded in 1979 as a high-tech enterprise in Nanyang City, Henan Province, China, has evolved from pioneering arrester manufacturing to a global leader in high-voltage transmission and distribution equipment. Embracing Industry 4.0 principles, Jinguan Electric drives core competitiveness through continuous innovation, with TiraThai serving as its premier brand for combined substation solutions. This sub-brand channels Jinguan Electric's expertise into customizable YB-12 substations that prioritize efficiency and adaptability, complying with international standards such as IEC 62271-202, GB/T 17467-1998, and IEEE C37. Certified by UL, cUL, CSA, SGS, CCC, CQC, CTQC, and CE, these units uphold ISO9001 (quality), ISO14001 (environmental), and ISO45001 (health & safety) management systems, backed by a minimum two-year warranty, comprehensive factory acceptance testing (FAT), and dedicated after-sales engineering support for global deployments.
The YB-12 series is suitable for ring network power distribution systems, dual power supply, or radiation terminal power distribution, making it a new complete set of equipment for urban and rural substation construction and transformation. TiraThai's philosophy—"dig 100 meters deep in 1 meter of space"—reflects Jinguan Electric's commitment to precision, delivering substations that minimize on-site assembly and maximize grid resilience for modern power infrastructure.
Substation Model: YB-12 Series (European) Rated Voltage: HV 12kV / LV 0.4kV Frequency: 50Hz
This modular integration makes TiraThai's YB-12 Series a cornerstone for efficient, space-saving power distribution.
Key Features and Engineering Excellence
TiraThai's YB-12 Series Outdoor Combined Box-Type Substation is engineered for superior performance, combining high-voltage switchgear, transformers (oil-immersed or dry-type), and low-voltage distribution in a single, prefabricated unit. The strong complete set reduces design and construction efforts, while the small size and compact structure—occupying just 1/10-1/15 the area of conventional substations—facilitate easy transport and rapid installation, cutting costs by up to 50%.

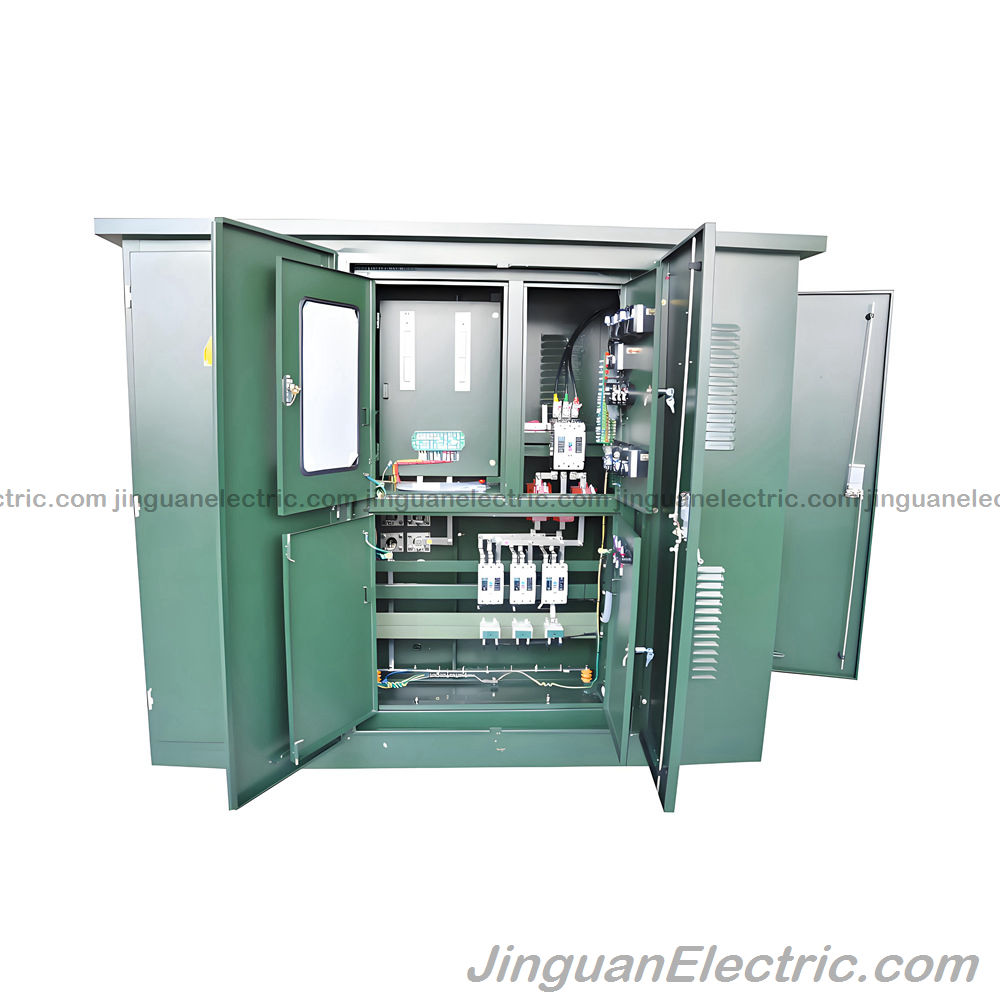

Safe and reliable operation is ensured through robust enclosures with IP54 protection against dust, moisture, and corrosion, supporting unmanned monitoring. Convenient maintenance features modular access panels and integrated fault indicators, minimizing downtime. Mobility allows relocation for temporary sites like construction or oil fields. Jinguan Electric's automated production—featuring prefabricated assembly, vacuum testing, and AI-driven inspections—guarantees defect-free units with low noise (under 55dB) for urban compatibility.
Compared to traditional substations, TiraThai YB-12 units offer 20-30% energy savings through optimized components and high overload capacity (up to 120% short-term). Optional features like SCADA integration and surge arresters enable smart grid compatibility. These attributes not only meet but exceed GB/T 17467-1998 and IEC 62271 standards, providing a substation that balances compactness, safety, and scalability.
Technical Specifications
TiraThai's YB-12 Series Outdoor Combined Box-Type Substation is precision-engineered for versatility, with baseline specs expandable through customization. Below is a detailed table of key parameters, based on Jinguan Electric's validated testing and compliant with GB/T 17467-1998, IEC 62271-202, and IEEE C37 standards.
| Parameter | Specification Details |
|---|---|
| Rated Voltage (kV) | HV: 12; LV: 0.4 |
| Frequency (Hz) | 50 |
| Transformer Capacity (kVA) | Customizable (e.g., 100-1600) |
| High-Voltage Equipment | Load Switch / Circuit Breaker (Customizable) |
| Low-Voltage Equipment | Distribution Panels (GGD / MNS, Customizable) |
| Enclosure Protection | IP54 (Dustproof, Waterproof, Corrosion-Resistant) |
| Noise Level (dB, 1m) | ≤55 |
| Operating Temperature (°C) | -30 to +40 |
| Operating Humidity (% RH) | ≤95 (Non-Condensing) |
| Seismic Acceleration (m/s²) | Horizontal ≤0.4; Vertical ≤0.15 |
| Wind Resistance (Pa) | 700 |
| Efficiency (%) | >98 (Integrated System) |
| Short-Circuit Withstand | 25kA / 2s |
| Dimensions (m, approx. 500kVA) | Length: 3-4; Width: 2.5; Height: 2.6 (Customizable) |
| Weight (tons, approx. 500kVA) | 3-5 |
These metrics support altitudes up to 1000m, with full type testing for thermal cycling, dielectric strength, and environmental resilience. Custom options include dry-type transformers and SCADA integration.
Applications and Performance Benefits
TiraThai's YB-12 Series Outdoor Combined Box-Type Substation is widely used in urban high-rise buildings, mines, oil fields, and temporary construction sites for compact power reception and distribution. In high-rises, it powers residential loads with space-saving design. Mines and oil fields benefit from robust enclosures for harsh conditions, while temporary sites leverage mobility for quick setups.
Ring network, dual power, or radiation terminal systems integrate seamlessly for grid transformation. Jinguan Electric's deployments yield 99.95% uptime, 20-30% cost savings, and MTBF over 50,000 hours, fostering resilient networks.
Why Choose TiraThai by Jinguan Electric?
TiraThai, as Jinguan Electric's sub-brand, delivers combined substation excellence backed by 45+ years of innovation. Our YB-12 series offers 1/10-1/15 footprint, modular reliability, and full customization, surpassing standards. With UL/CE certifications, we ensure 25% faster installation and lower TCO for efficient power.
Expanded FAQ Section
How are TiraThai substations shipped internationally? Shipped via sea, rail, or truck for global delivery. Prefabricated units in bulk packaging for stability, accessories in wooden cases to withstand transit stresses.
Can TiraThai products be customized? Yes, tailored for voltage, frequency, and equipment types through Jinguan Electric's engineering team.
What warranty do you provide? At least two years comprehensive coverage for defects, performance, and materials, with extensions available.
Is Factory Acceptance Testing (FAT) supported? Standard: Full electrical, thermal, and integration tests per unit, with client witnessing in-person or remotely.
Do you provide after-sales engineering support? Yes, Jinguan Electric deploys engineers for on-site installation, commissioning, troubleshooting, and audits.
What makes the European design superior? Compact integration of switchgear and transformer, with sealed protection for 1/10-1/15 area savings.
Are they suitable for renewables? Yes, customizable for solar/wind with overload capacity and low noise for grid integration.
Certifications and Quality Assurance
TiraThai products, supplied through Jinguan Electric, hold UL, cUL, CSA, SGS, CCC, CQC, CTQC, and CE certifications, plus mandatory approvals. Systems certified to ISO9001 (quality), ISO14001 (environment), and ISO45001 (health & safety), ensuring GB/T 17467-1998, IEC 62271-202, and IEEE C37 compliance for global excellence.
