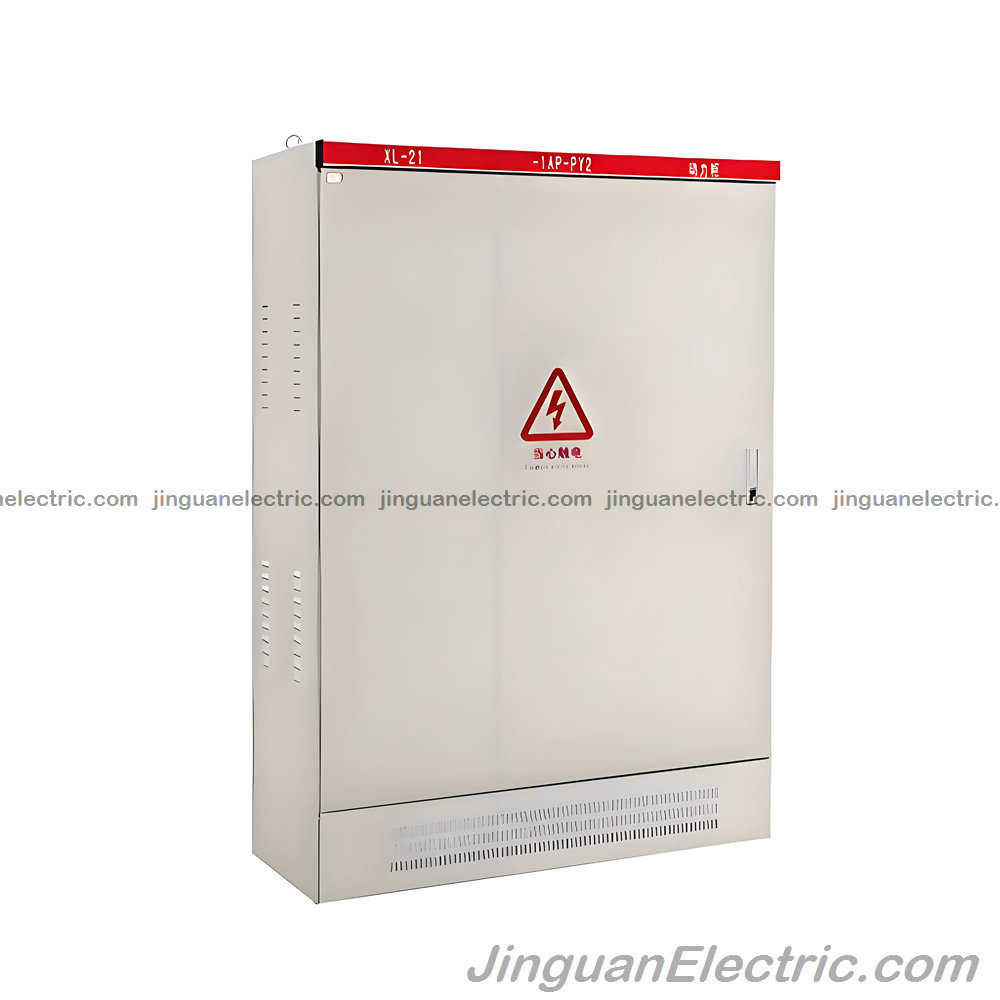

TiraThai, a specialized sub-brand of Jinguan Electric dedicated to transformer and electrical equipment innovations, proudly introduces the XL Type Low-Voltage Power Distribution Cabinets. These versatile units are engineered for efficient AC power and lighting distribution, featuring a durable shell made from bent steel plates for a compact structure, convenient maintenance, and flexible circuit combinations. Equipped with air circuit breakers, fuses, contactors, and thermal relays for robust circuit protection, the XL cabinets support operation buttons and indicator lights on the front door, along with an electric switch handle on the upper right column for seamless power switching through the door. Upon opening the door, all internal equipment is fully exposed for easy access and servicing, ensuring minimal downtime in dynamic environments.
Jinguan Electric, founded in 1979 as a high-tech enterprise in Nanyang City, Henan Province, China, has evolved from pioneering arrester manufacturing to a global leader in high-voltage and low-voltage power equipment. Embracing Industry 4.0 principles, Jinguan Electric drives core competitiveness through continuous innovation, with TiraThai serving as its premier brand for low-voltage distribution solutions. This sub-brand channels Jinguan Electric's expertise into customizable XL Power Cabinets that prioritize safety, efficiency, and adaptability, meeting international standards such as IEC 61439-1, GB/T 7251.1, and UL 508A. Certified by UL, CUL, CCC, CQC, CTQC, CE, and SGS, these cabinets uphold ISO9001 (quality), ISO14001 (environmental), and ISO45001 (health & safety) management systems, backed by a minimum two-year warranty, comprehensive factory acceptance testing (FAT), and dedicated after-sales engineering support for global installations.
The TiraThai XL Power Cabinets are designed for AC systems with frequencies of 50Hz-60Hz, load currents below 630A, and voltages under 500V, supporting single-phase and three-phase configurations including IT, TN-C, and TT systems (three-phase three-wire or four-wire setups). Customizable for voltage, frequency, and regional specialties, they integrate seamlessly into diverse power networks. TiraThai's design philosophy—"dig 100 meters deep in 1 meter of space"—reflects Jinguan Electric's commitment to precision, delivering compact, reliable solutions that enhance operational efficiency and safety for industrial, civil, and institutional applications worldwide.
Cabinet Model: XL Type Series Rated Voltage: ≤500V AC Rated Current: ≤630A Frequency: 50/60Hz
This flexibility positions TiraThai's Power Cabinets as an essential choice for streamlined, cost-effective power distribution in modern infrastructure.
Key Features and Engineering Excellence
TiraThai's XL Power Cabinets are distinguished by their user-centric design, balancing compactness with superior accessibility and protection. The bent steel plate shell provides a robust, space-efficient enclosure that withstands industrial rigors, while the exposed equipment layout upon door opening simplifies maintenance, reducing service time by up to 50%. Flexible circuit combinations allow tailored configurations for diverse loads, with integrated air circuit breakers and fuses ensuring reliable overcurrent and short-circuit protection.
Optional contactors and thermal relays enable precise motor control, complemented by front-mounted operation buttons and indicator lights for intuitive status monitoring. The electric switch handle facilitates door-closed power switching, enhancing safety during routine operations. Jinguan Electric's automated production—featuring precision sheet metal forming, automated assembly, and AI-driven quality inspections—guarantees defect-free units with corrosion-resistant coatings for longevity in humid or dusty environments.
Compared to traditional distribution panels, TiraThai cabinets offer 20-30% smaller footprints and modular scalability for future expansions. Optional features like integrated metering and surge protection align with smart grid demands. These attributes not only comply with GB/T 7251.1 and IEC 61439-1 but exceed them, providing users with a cabinet that optimizes efficiency, safety, and adaptability for global power needs.
Technical Specifications
TiraThai's XL Power Cabinets are precision-engineered for reliability, with baseline specs expandable through customization. Below is a detailed table of key parameters, validated through Jinguan Electric's certified testing and compliant with GB/T 7251.1, IEC 61439-1, and UL 508A standards.
| Parameter | Specification Details |
|---|---|
| Rated Voltage (V) | ≤500 AC |
| Rated Current (A) | ≤630 (main circuit) |
| Frequency (Hz) | 50-60 |
| Systems Supported | Single-phase / Three-phase (IT, TN-C, TT; 3-wire/4-wire) |
| Protection Devices | Air circuit breakers, fuses, contactors, thermal relays |
| Enclosure Material | Bent steel plate (corrosion-resistant) |
| Enclosure Protection | IP40 standard; IP54 optional |
| Insulation Class | Class I (grounded) |
| Operating Temperature (°C) | -5 to +40 |
| Operating Humidity (% RH) | ≤95 (non-condensing) |
| Short-Circuit Withstand (kA) | 20 / 1s (integrated) |
| Noise Level (dB, 1m) | ≤50 |
| Dimensions (m, standard) | Width: 0.6-1.0; Depth: 0.4-0.8; Height: 1.8-2.2 (customizable) |
| Weight (kg, standard) | 100-400 (depending on configuration) |
These metrics support altitudes up to 2000m, with full routine testing for dielectric strength, thermal stability, and short-circuit performance. Custom options include enhanced IP ratings and smart metering.
Applications and Real-World Performance
TiraThai's XL Power Cabinets are versatile, suited for low-voltage power and lighting distribution across sectors. In industrial and mining enterprises, they manage feeder circuits for machinery and lighting, with flexible combinations ensuring reliable protection amid heavy loads. Civil buildings, schools, and institutions deploy them for safe, efficient distribution to classrooms, offices, and utilities, supporting single- or three-phase setups without extensive wiring.
Jinguan Electric's global installations demonstrate 99.95% uptime, 15-20% space savings, and MTBF over 50,000 hours, ideal for environments requiring compact, maintenance-free solutions.
Why Choose TiraThai by Jinguan Electric?
TiraThai, as Jinguan Electric's sub-brand, delivers power cabinet excellence backed by 45+ years of innovation. Our XL series offers compact modularity, exposed maintenance access, and full customization, surpassing standards. With UL/CE certifications and durable steel construction, we ensure 25% lower installation costs and superior reliability for global users.
Expanded FAQ Section

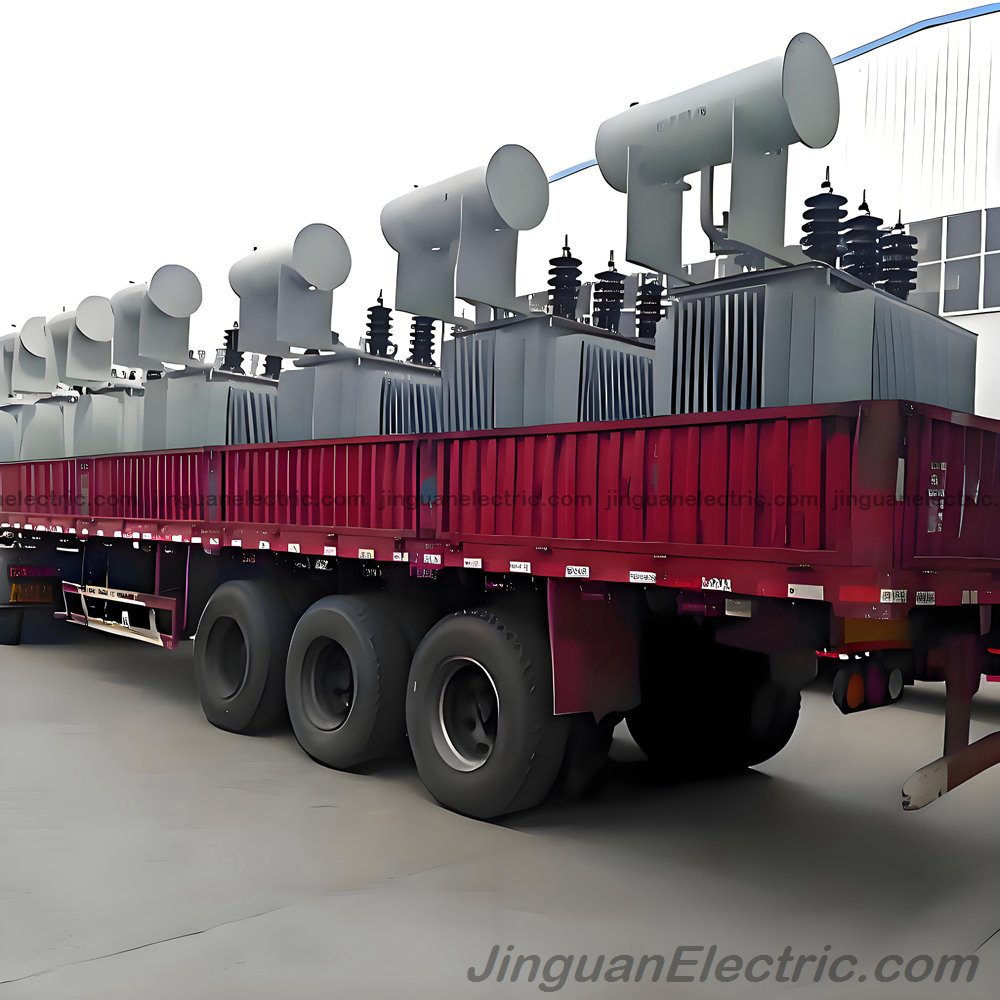

How are TiraThai cabinets shipped internationally? Shipped via sea, rail, or truck for global delivery. Units in bulk packaging for stability, components in wooden cases to withstand transit stresses.
Can TiraThai products be customized? Yes, tailored for voltage, frequency, protection devices, and regional standards through Jinguan Electric's engineering team.
What warranty do you provide? At least two years comprehensive coverage for defects, performance, and materials, with extensions available.
Is Factory Acceptance Testing (FAT) supported? Standard: Full electrical, mechanical, and protection tests per unit, with client witnessing in-person or remotely.
Do you provide after-sales engineering support? Yes, Jinguan Electric deploys engineers for on-site installation, commissioning, troubleshooting, and audits.
What systems do they support? Single/three-phase IT, TN-C, TT (3/4-wire), for AC power/lighting under 500V/630A.
Are they maintenance-friendly? Yes, door-open exposes all equipment for quick access, reducing service time.
Certifications and Quality Assurance
TiraThai products, supplied through Jinguan Electric, hold UL, CUL, CSA, SGS, CCC, CQC, CTQC, and CE certifications, plus mandatory approvals. Systems certified to ISO9001 (quality), ISO14001 (environment), and ISO45001 (health & safety), ensuring GB/T 7251.1 and IEC 61439-1 compliance for global excellence.
