Jinguan Electric, founded in 1979 as a high-tech enterprise in Nanyang City, Henan Province, China, has evolved from pioneering arrester manufacturing to a global leader in high-voltage transmission and distribution equipment. Embracing Industry 4.0 principles, Jinguan Electric drives core competitiveness through continuous innovation, with TiraThai serving as its premier brand for modular substation solutions. This sub-brand channels Jinguan Electric's expertise into weatherproof, stackable container-type substations that comply with international standards such as IEEE/ANSI, IEC 62271, and GB/T 17467. Certified by UL, cUL, CSA, SGS, CCC, CQC, CTQC, and CE, these substations uphold ISO9001 (quality), ISO14001 (environmental), and ISO45001 (health & safety) management systems, backed by a minimum two-year warranty, factory acceptance testing (FAT), and comprehensive after-sales support including on-site installation guidance.

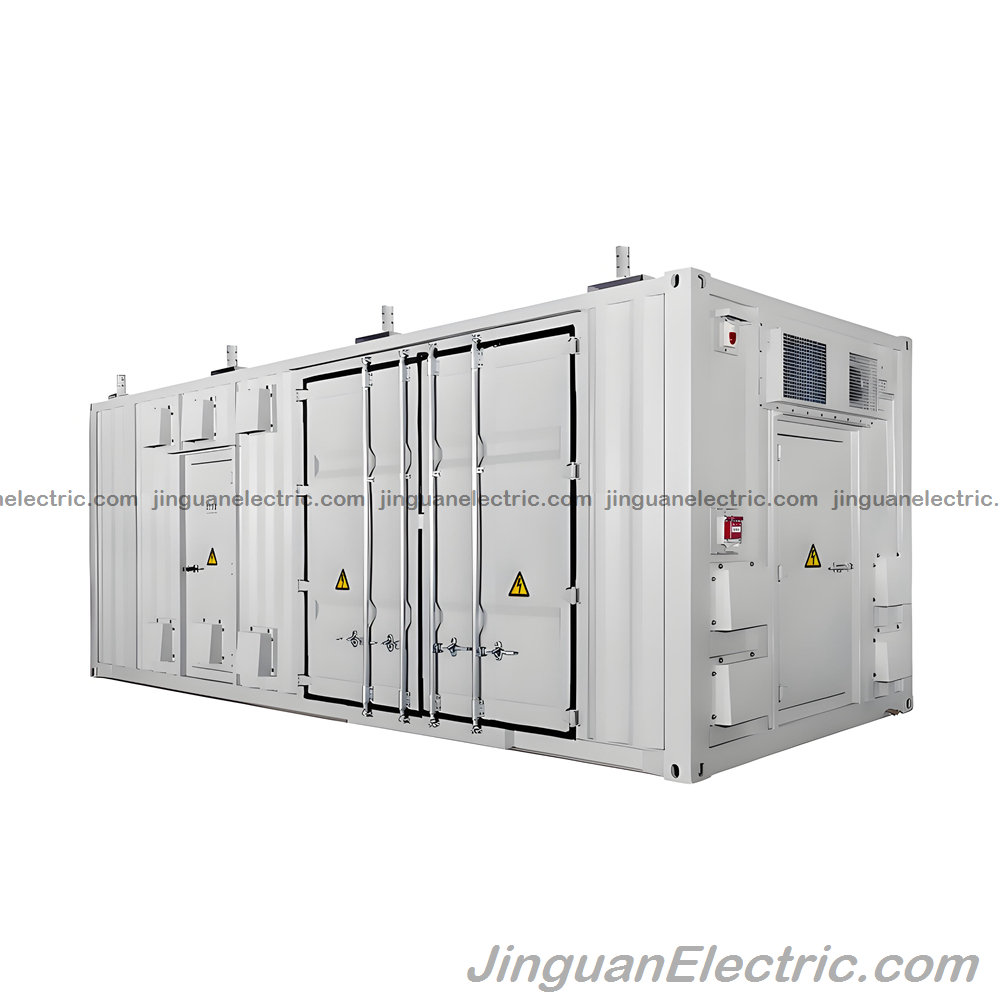

The TiraThai Container-Type Substation features a standard-length container shell certified by classification societies, enabling easy stacking for long-distance sea transport and reducing shipping costs by up to 30%. HV side options include vacuum circuit breakers, vacuum load switch-fuse combinations, or SF6 switches, while LV side configurations support cabinet types like GGL, GGD, GCS, or MNS. Operating reliably in harsh environments—from -40°C to +50°C and up to 95% humidity—these substations facilitate unmanned operation with minimal maintenance. TiraThai's design philosophy—"dig 100 meters deep in 1 meter of space"—reflects Jinguan Electric's commitment to precision, delivering integrated solutions that enhance power reliability and efficiency for diverse applications.
Substation Model: Container-Type Series Rated Voltage: 10-35kV (Customizable) Capacity Range: 30-7000kVA (Customizable) Frequency: 50/60Hz
This configurability positions TiraThai's Container-Type Substations as a go-to solution for modular, resilient power infrastructure worldwide.
Key Features and Engineering Excellence
TiraThai's Container-Type Substations are engineered for superior performance, combining modularity with robust environmental protection. The container shell provides excellent sealing, waterproofing (IP54 rated), windproofing, heat insulation, and high structural strength, certified for stacking and maritime transport to withstand long-distance shipping without damage. This design minimizes on-site assembly time by 50%, enabling rapid deployment in remote or urban settings.

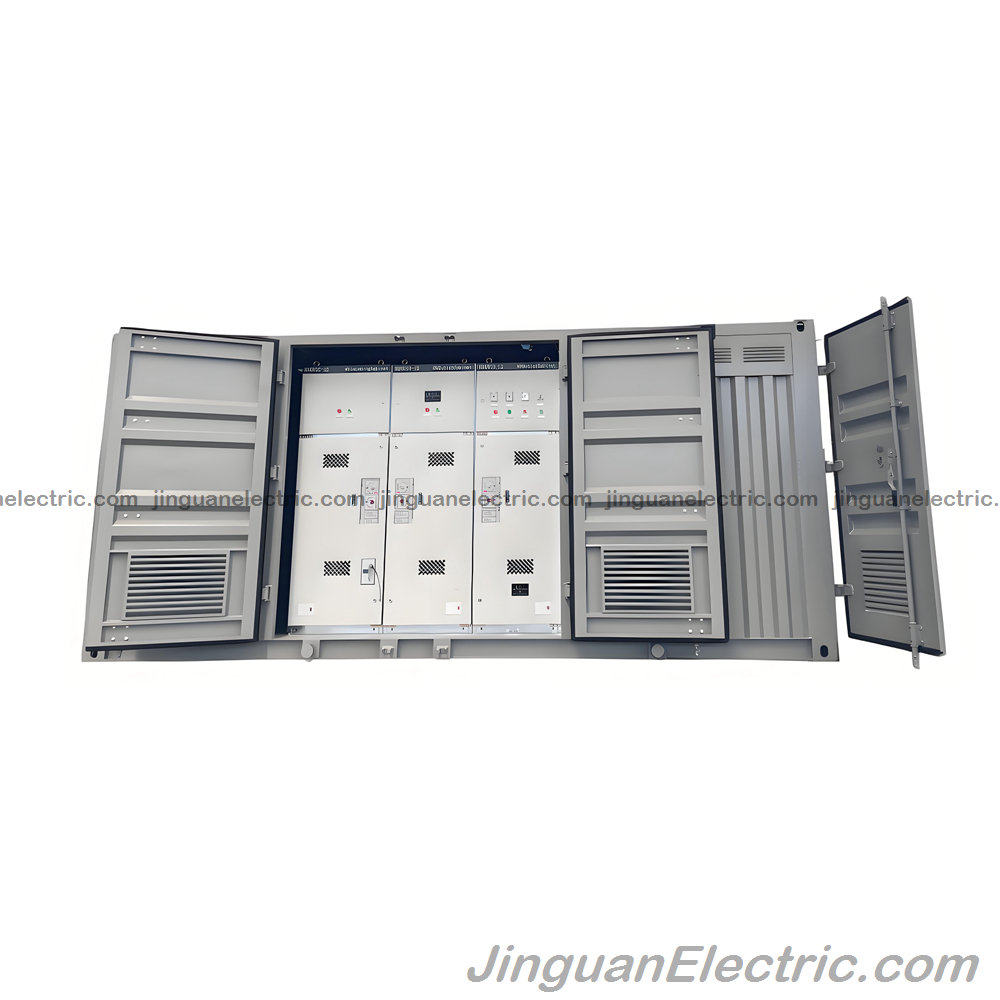

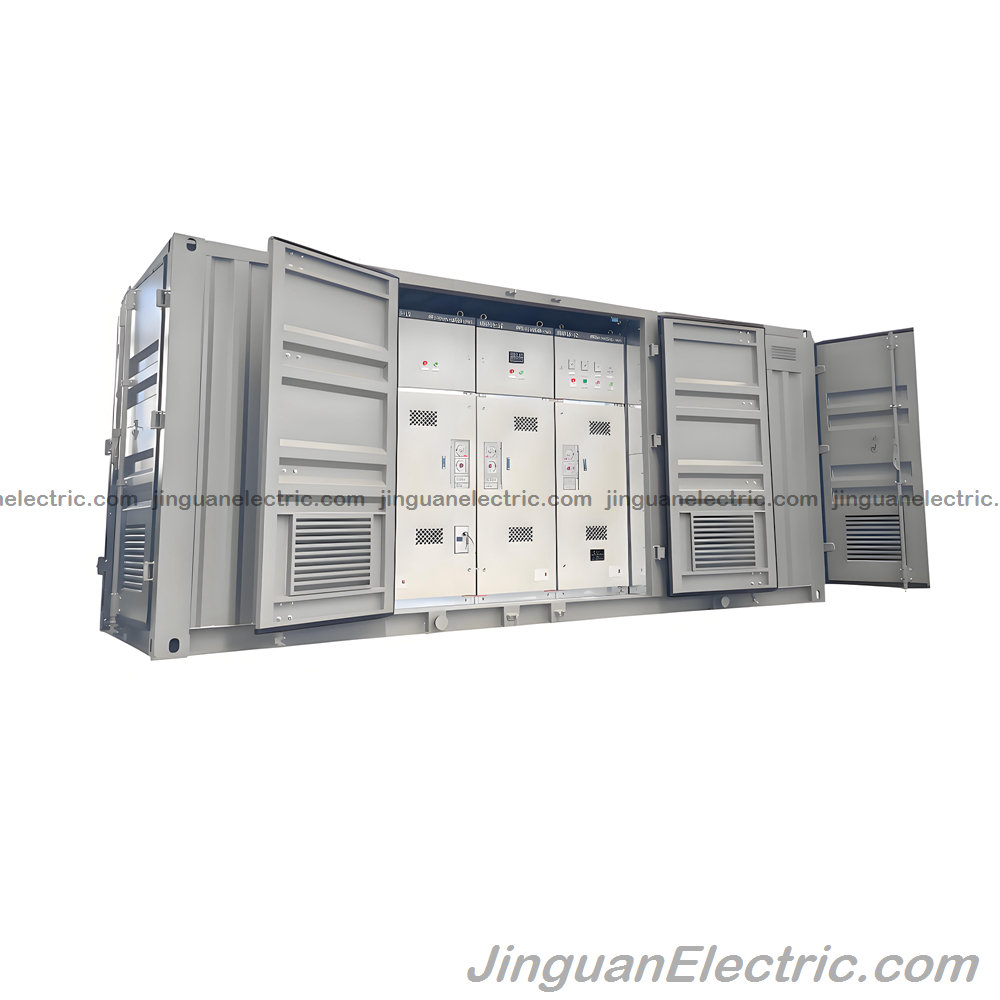

The HV compartment integrates advanced switching devices—such as vacuum circuit breakers for reliable interruption, vacuum load switch-fuse combos for compact protection, or SF6 switches for high-reliability arc quenching—ensuring fault isolation and overcurrent safeguarding. The LV side employs versatile cabinets (GGL for distribution, GGD for AC low-voltage, GCS for withdrawable, or MNS for modular) to handle diverse load requirements, with built-in metering, protection relays, and surge arresters for enhanced system stability.

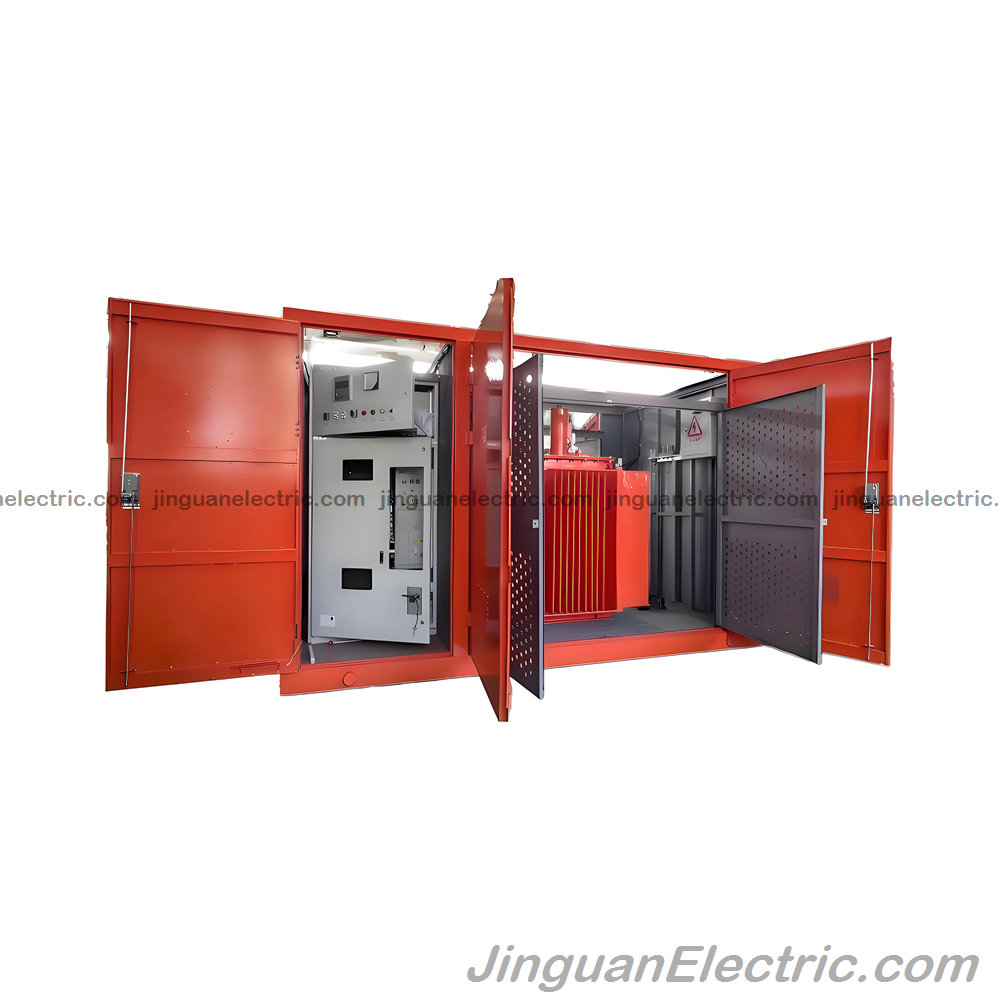

Internal transformers are oil-immersed or dry-type (customizable), with low-loss cores and windings for >98% efficiency, supporting overloads up to 120% short-term. Jinguan Electric's automated production—featuring prefabricated modular assembly, vacuum testing, and digital simulations—guarantees leak-free, vibration-resistant construction. Optional features like remote SCADA integration, fire suppression systems, and eco-friendly biodegradable oils align with green standards. Compared to traditional substations, TiraThai units reduce footprint by 40%, cut installation costs by 25%, and offer unmanned operation with noise levels under 60dB.
These features not only comply with IEEE/ANSI and IEC 62271 but exceed them, providing users with a substation that thrives in extreme conditions while optimizing energy use and safety.
Technical Specifications
TiraThai's Container-Type Substations are precision-built for reliability, with baseline specs expandable through customization. Below is a detailed table of key parameters, validated through Jinguan Electric's certified testing and compliant with IEEE/ANSI, IEC 62271, and GB/T 17467 standards.
| Parameter | Specification Details |
|---|---|
| Capacity Range (kVA) | 30-7000 (customizable, e.g., 500kVA for medium loads) |
| Rated Voltage (kV) | HV: 10 / 20 / 35; LV: 0.4 / 0.69 (customizable) |
| Frequency (Hz) | 50/60 |
| HV Side Configurations | Vacuum circuit breaker, vacuum load switch-fuse combo, SF6 switch (customizable) |
| LV Side Configurations | GGL, GGD, GCS, MNS cabinets (customizable) |
| Insulation Class | Class A (105°C rise) for transformers |
| Cooling Method | ONAN (transformer); natural ventilation (enclosure) |
| Enclosure Protection | IP54 (waterproof, dustproof, weather-resistant) |
| Noise Level (dB, 1m) | ≤60 |
| Operating Temperature (°C) | -40 to +50 |
| Operating Humidity (% RH) | ≤95 (non-condensing) |
| Short-Circuit Withstand | 40kA / 2s (integrated protection) |
| Efficiency (%) | >98 at full load |
| Transport Certification | Stackable container (classification society approved) |
| Weight (tons, approx. 500kVA) | 5-8 (modular assembly) |
| Dimensions (m, standard) | Length: 6-12; Width: 2.5; Height: 2.6 (customizable) |
These metrics support altitudes up to 1000m, with full type testing for thermal cycling, dielectric strength, and seismic resilience (up to 0.5g). Custom options include dry-type transformers and integrated renewables support.
Applications and Real-World Performance
TiraThai's Container-Type Substations are versatile, tailored for modular power needs in challenging environments. In industrial parks, they provide integrated HV/LV distribution for factories and warehouses, enabling quick plug-and-play setups with minimal civil works. Remote mining or oilfield operations benefit from the weather-resistant, transportable design, powering heavy equipment via stackable containers shipped globally.
Urban utilities deploy them for temporary or expansion substations, supporting residential feeders with low-noise, unmanned operation. Renewable energy sites, such as solar farms, integrate them for step-up collection, with customizable HV options handling variable outputs. In disaster recovery, the prefabricated structure facilitates rapid restoration, reducing downtime by 40%.
Jinguan Electric's installations show 99.9% uptime, 20% energy savings from efficient components, and MTBF over 100,000 hours, ideal for resilient infrastructure.
Why Choose TiraThai by Jinguan Electric?
As Jinguan Electric's sub-brand, TiraThai delivers modular substation excellence backed by 45+ years of innovation. Our Container-Type units offer stackable transport, IP54 protection, and full customization, surpassing standards. With UL/CSA certifications and sustainable designs, we ensure 25-30% cost savings and superior reliability for global projects.
Expanded FAQ Section
How are TiraThai substations shipped internationally? Shipped via sea, rail, or truck for global delivery. Stackable containers in bulk packaging, accessories in wooden cases to withstand transit stresses.
Can TiraThai products be customized? Yes, tailored for voltage, frequency, switchgear types, and regional standards through Jinguan Electric's engineering team.
What warranty do you provide? At least two years comprehensive coverage for defects, performance, and materials, with extensions available.
Is Factory Acceptance Testing (FAT) supported? Standard: Full electrical, thermal, and integration tests per unit, with client witnessing in-person or remotely.
Do you provide after-sales engineering support? Yes, Jinguan Electric deploys engineers for on-site installation, commissioning, troubleshooting, and audits.
What makes them weather-resistant? IP54 sealed container with heat insulation, windproofing, and structural strength for -40°C to +50°C operation.
Are they suitable for renewables? Absolutely—customizable for solar/wind with HV integration and overload capacity for variable loads.
Certifications and Quality Assurance
TiraThai products, supplied through Jinguan Electric, hold UL, cUL, CSA, SGS, CCC, CQC, CTQC, and CE certifications, plus mandatory approvals. Systems certified to ISO9001 (quality), ISO14001 (environment), and ISO45001 (health & safety), ensuring IEEE/ANSI, IEC 62271, and GB/T 17467 compliance for global excellence.
