Product Overview

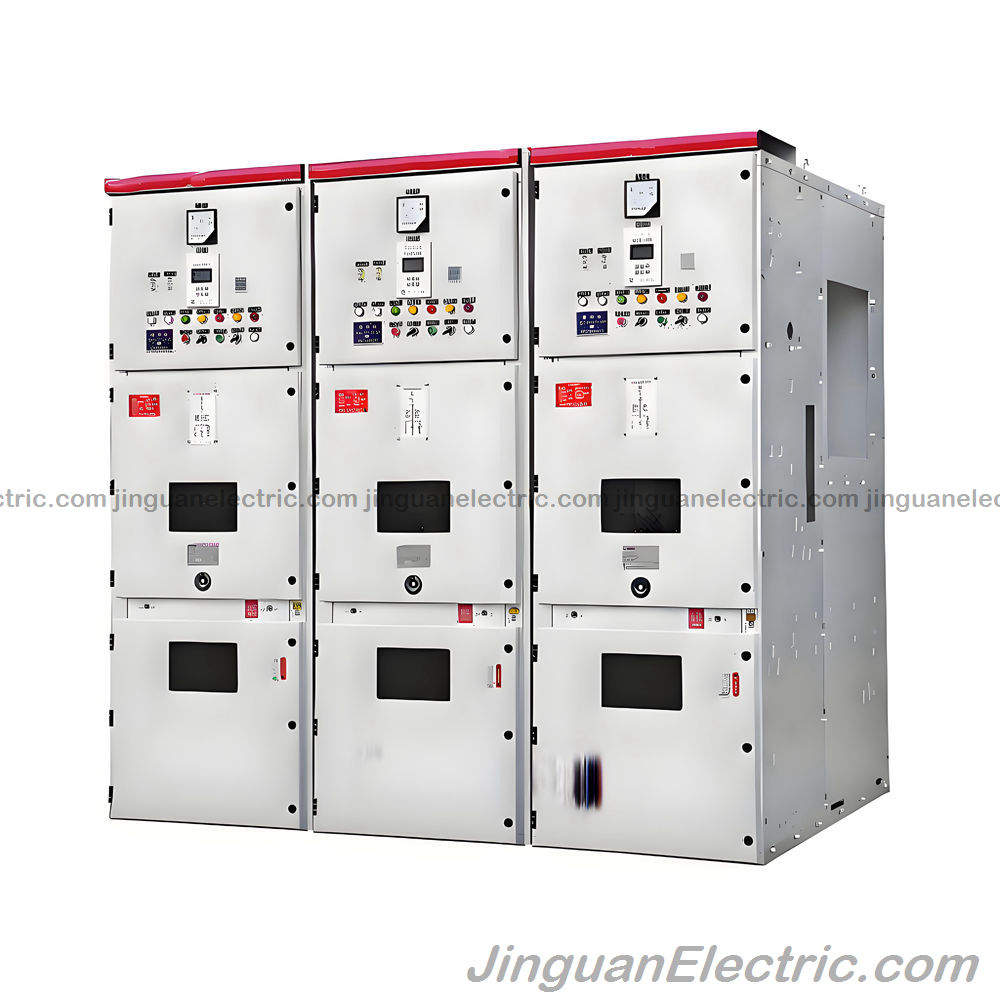

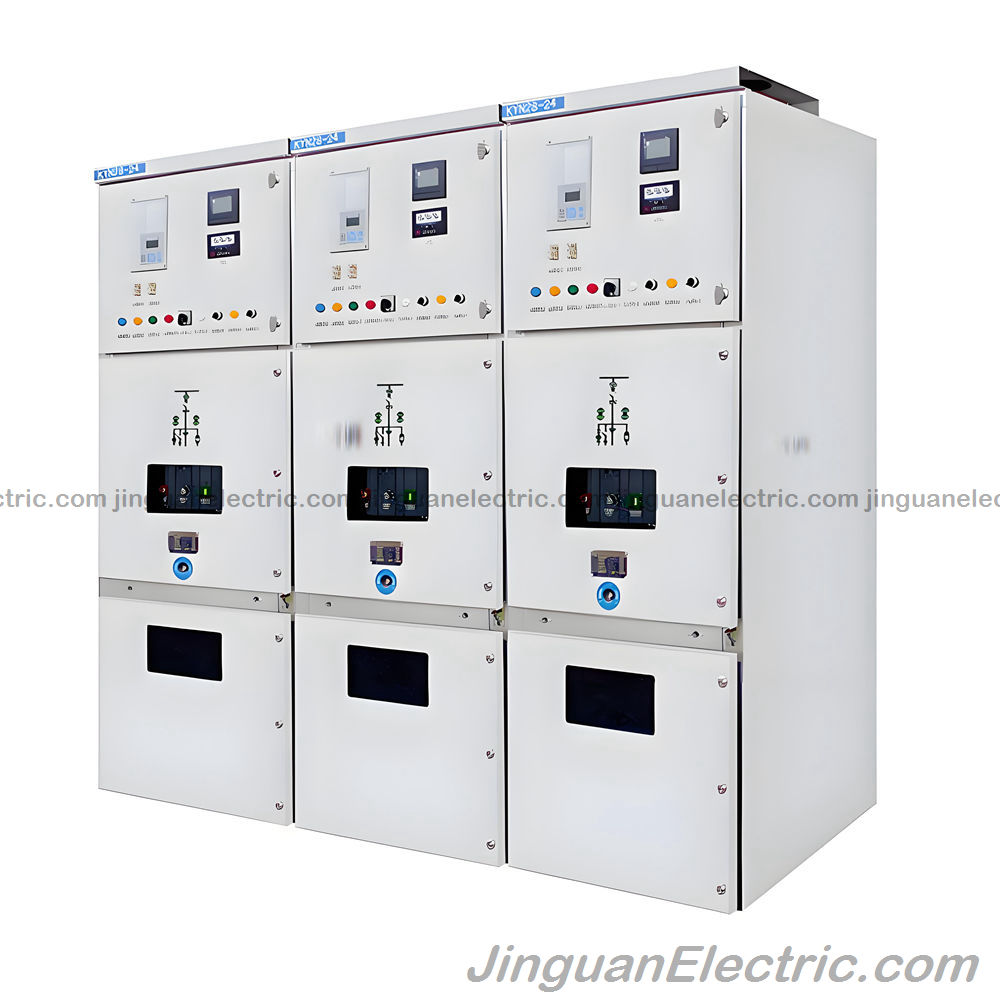

TiraThai, a specialized sub-brand of Jinguan Electric dedicated to transformer and electrical equipment innovations, proudly introduces the KYN28A-24 Series Metal-Clad Removable AC Metal-Enclosed Switchgear, also known as SDK1-24. This advanced switchgear is designed for three-phase AC power systems at 50/60Hz and rated voltage of 24kV, serving as a critical component in power stations, substations, industrial and mining enterprises, and other power systems. It facilitates the reception, distribution, control, protection, and monitoring of electric energy, ensuring seamless operation in demanding environments.
Jinguan Electric, founded in 1979 as a high-tech enterprise in Nanyang City, Henan Province, China, has evolved from pioneering arrester manufacturing to a global leader in high-voltage transmission and distribution equipment. Embracing Industry 4.0 principles, Jinguan Electric drives core competitiveness through continuous innovation, with TiraThai serving as its premier brand for metal-enclosed switchgear solutions. This sub-brand channels Jinguan Electric's expertise into customizable KYN28A-24 switchgear that prioritizes safety, modularity, and reliability, complying with international standards such as IEC 62271-200, GB 3906, and IEEE C37.20.2. Certified by UL, cUL, CSA, SGS, CCC, CQC, CTQC, and CE, these units uphold ISO9001 (quality), ISO14001 (environmental), and ISO45001 (health & safety) management systems, backed by a minimum two-year warranty, comprehensive factory acceptance testing (FAT), and dedicated after-sales engineering support for global deployments.
The KYN28A-24 series is engineered for installations where the vertical inclination does not exceed 5°, in locations free from severe vibration, impact, or corrosive environments affecting electrical components. Customizable for voltage, frequency, and regional specialties, it supports flexible configurations for overhead or cable connections. TiraThai's philosophy—"dig 100 meters deep in 1 meter of space"—reflects Jinguan Electric's commitment to precision, delivering switchgear that minimizes footprint while maximizing safety and uptime for modern power infrastructure.
Switchgear Model: KYN28A-24 / SDK1-24 Series Rated Voltage: 24kV AC Rated Frequency: 50/60Hz
This robust design makes TiraThai's KYN28A-24 Series a cornerstone for efficient, protected power control in substations and industries.
Key Features and Engineering Excellence
TiraThai's KYN28A-24 Series Metal-Clad Removable AC Metal-Enclosed Switchgear is engineered for superior safety and modularity, featuring a metal-clad structure that provides armored protection against arcs and faults. The removable design allows for easy maintenance and upgrades without system downtime, with internal components accessible for quick inspections. The enclosure is constructed from corrosion-resistant materials like stainless steel or galvanized steel, ensuring durability in non-corrosive environments while supporting inclinations up to 5° for flexible installations.
The switchgear integrates vacuum or SF6 circuit breakers for reliable interruption, with complete "five prevention" interlocks—anti-misoperation, live interval verification, anti-error grounding, accidental closing prevention, and live part entry prevention—to enhance personnel safety. Jinguan Electric's automated production—featuring precision assembly, vacuum testing, and AI-driven inspections—guarantees defect-free units with IP54 protection against dust and water. Optional features like integrated relays and SCADA interfaces enable smart grid integration.
Compared to fixed switchgear, TiraThai KYN28A-24 units reduce maintenance time by 40% and offer 20-30% better arc resistance. These attributes not only meet but exceed GB 3906 and IEC 62271-200 standards, providing users with switchgear that balances compactness, safety, and scalability.
Technical Specifications
TiraThai's KYN28A-24 Series is precision-engineered for reliability, with baseline specs expandable through customization. Below is a detailed table of key parameters, based on Jinguan Electric's validated testing and compliant with GB 3906, IEC 62271-200, and IEEE C37.20.2 standards.
| Parameter | Specification Details |
|---|---|
| Rated Voltage (kV) | 24 AC |
| Rated Frequency (Hz) | 50/60 |
| Rated Current (A) | Up to 3150 (main busbar) |
| Short-Circuit Withstand (kA) | 40 / 2s (dynamic); 20 / 4s (thermal) |
| Breaker Compatibility | Vacuum or SF6 Circuit Breakers (Customizable) |
| Wiring Schemes Supported | >198 main schemes (customizable) |
| Enclosure Material | Stainless Steel / Galvanized Steel (Corrosion-Resistant) |
| Enclosure Protection | IP54 (Dustproof, Waterproof) |
| Installation Inclination (°) | ≤5 (Vertical) |
| Operating Temperature (°C) | -40 to +40 |
| Operating Humidity (% RH) | ≤95 (non-condensing) |
| Noise Level (dB, 1m) | ≤60 |
| Dimensions (m, standard bay) | Width: 0.8-1.2; Depth: 1.5-2.0; Height: 2.2-2.5 (customizable) |
| Weight (kg, standard bay) | 800-1500 (modular) |
These metrics support altitudes up to 1000m, with full type testing for arc fault containment, dielectric strength, and vibration resistance. Custom options include SF6-free vacuum breakers.
Applications and Performance Benefits
TiraThai's KYN28A-24 Series is tailored for power stations, substations, industrial/mining enterprises, and other power systems. In substations, it manages distribution and protection for 24kV lines, ensuring stable supply. Industrial sites like mining use it for fault isolation amid vibration, while power stations integrate it for control and monitoring.
Jinguan Electric's deployments yield 99.95% uptime, 20% reduced footprint, and MTBF over 80,000 hours, ideal for resilient networks.
Why Choose TiraThai by Jinguan Electric?
TiraThai, as Jinguan Electric's sub-brand, delivers metal-clad excellence backed by 45+ years of innovation. Our KYN28A-24 series offers removable modularity, "five prevention" safety, and full customization, surpassing standards. With UL/CE certifications, we ensure 25% faster deployment and lower TCO for global power.
Expanded FAQ Section
How are TiraThai switchgear shipped internationally? Shipped via sea, rail, or truck for global delivery. Modular bays in bulk packaging for stability, breakers in wooden cases to withstand transit stresses.
Can TiraThai products be customized? Yes, tailored for voltage, frequency, breaker types, and wiring schemes through Jinguan Electric's engineering team.
What warranty do you provide? At least two years comprehensive coverage for defects, performance, and materials, with extensions available.
Is Factory Acceptance Testing (FAT) supported? Standard: Full electrical, mechanical, and safety tests per unit, with client witnessing in-person or remotely.
Do you provide after-sales engineering support? Yes, Jinguan Electric deploys engineers for installation, commissioning, troubleshooting, and audits.
What are the "five prevention" functions? Anti-misoperation, live interval verification, anti-error grounding, accidental closing prevention, and live part entry prevention for ultimate safety.
Are SF6-free options available? Yes, vacuum breakers for eco-friendly, maintenance-free operation.
Certifications and Quality Assurance
TiraThai products, supplied through Jinguan Electric, hold UL, CUL, CSA, SGS, CCC, CQC, CTQC, and CE certifications, plus mandatory approvals. Systems certified to ISO9001 (quality), ISO14001 (environment), and ISO45001 (health & safety), ensuring GB 3906, IEC 62271-200, and IEEE C37.20.2 compliance for global excellence.
