LV Switchgear

TiraThai, a specialized sub-brand of Jinguan Electric dedicated to transformer and electrical equipment innovations, proudly introduces the LV Switchgear. These low-voltage power distribution units, operating at 0.4-1kV, are designed for efficient, safe, and intelligent power management in industrial, commercial, and utility applications. Featuring modular cabinet designs such as GGD, GCS, and MNS, TiraThai's LV Switchgear offers flexible configurations for power receiving, distribution, reactive compensation, and motor control, ensuring seamless integration into diverse electrical systems. The units are engineered for high reliability, supporting unmanned operation with minimal maintenance in environments up to 95% humidity and 40°C ambient temperature.

Jinguan Electric, founded in 1979 as a high-tech enterprise in Nanyang City, Henan Province, China, has evolved from its roots in arrester manufacturing to a global leader in high-voltage and low-voltage power equipment. Leveraging Industry 4.0 principles, Jinguan Electric drives innovation, with TiraThai as its flagship brand for advanced switchgear solutions. This sub-brand channels Jinguan Electric's expertise into customizable LV switchgear that meets international standards like IEC 61439-1, GB/T 7251.1, and IEEE C37.20.1. Certified by UL, cUL, CSA, SGS, CCC, CQC, CTQC, and CE, these units uphold ISO9001 (quality), ISO14001 (environmental), and ISO45001 (health & safety) standards, supported by a minimum two-year warranty, comprehensive factory acceptance testing (FAT), and dedicated after-sales engineering services.

TiraThai's LV Switchgear supports a variety of functions, including busbar connections, circuit protection, and smart monitoring, with customizable outgoing circuits for specific load demands. The modular design allows easy expansion and retrofitting, while robust enclosures ensure safety with "five prevention" interlocks to avoid misoperation. TiraThai's design philosophy—"dig 100 meters deep in 1 meter of space"—reflects Jinguan Electric's commitment to precision, delivering compact, intelligent solutions that optimize space, reduce installation time by 30%, and enhance power reliability for global applications.

Switchgear Model: GGD/GCS/MNS Series Rated Voltage: 0.4-1kV AC Frequency: 50/60Hz

This adaptability makes TiraThai's LV Switchgear a cornerstone for efficient, scalable low-voltage power distribution worldwide.

Key Features and Engineering Excellence

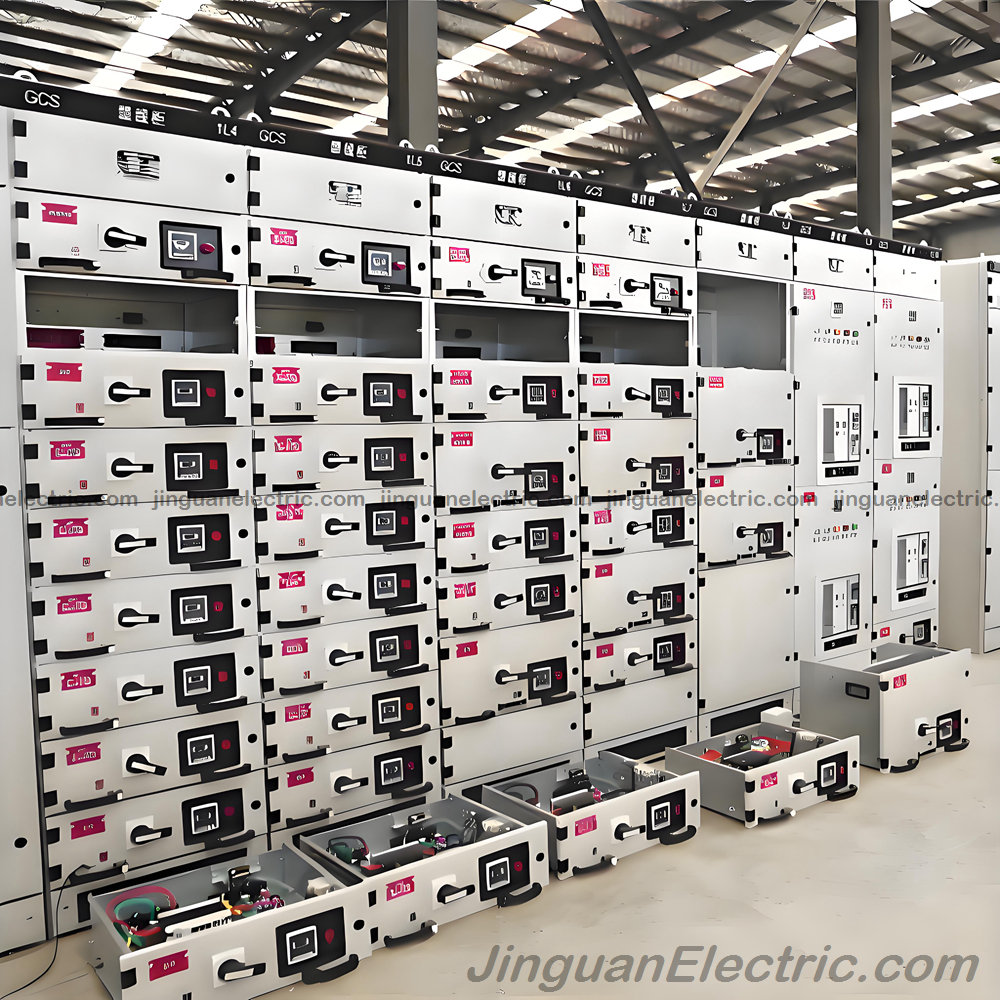

TiraThai's LV Switchgear is engineered for versatility and safety, incorporating advanced features to meet modern power demands. The modular cabinet options—GGD (fixed-type for distribution), GCS (withdrawable for flexibility), and MNS (compact, multi-functional)—support diverse applications, from power distribution to motor control centers (MCC). Each cabinet integrates circuit breakers (MCCB or ACB), busbars, and secondary terminals, with options for intelligent relays and SCADA integration for real-time monitoring and fault diagnostics.

The "five prevention" interlock system ensures safety by preventing misoperation, live part access, accidental breaker closure, incorrect grounding, and live interval entry. Enclosures, made from cold-rolled steel or aluminum-zinc alloy, offer IP40/IP54 protection against dust and water, with corrosion-resistant coatings for durability in harsh environments. The design supports high breaking capacities (up to 80kA) and short-circuit withstand (40kA/1s), ensuring robust fault protection.

Jinguan Electric's automated production—featuring precision assembly, vacuum testing, and AI-driven quality checks—guarantees defect-free units. Compared to traditional LV panels, TiraThai switchgear reduces footprint by 25%, cuts installation time, and achieves >99% power continuity. Optional features like reactive power compensation and harmonic filters enhance efficiency, while low noise (under 55dB) suits urban installations. These attributes exceed IEC 61439-1 and GB/T 7251.1 standards, delivering a switchgear solution that balances intelligence, safety, and scalability.

Technical Specifications

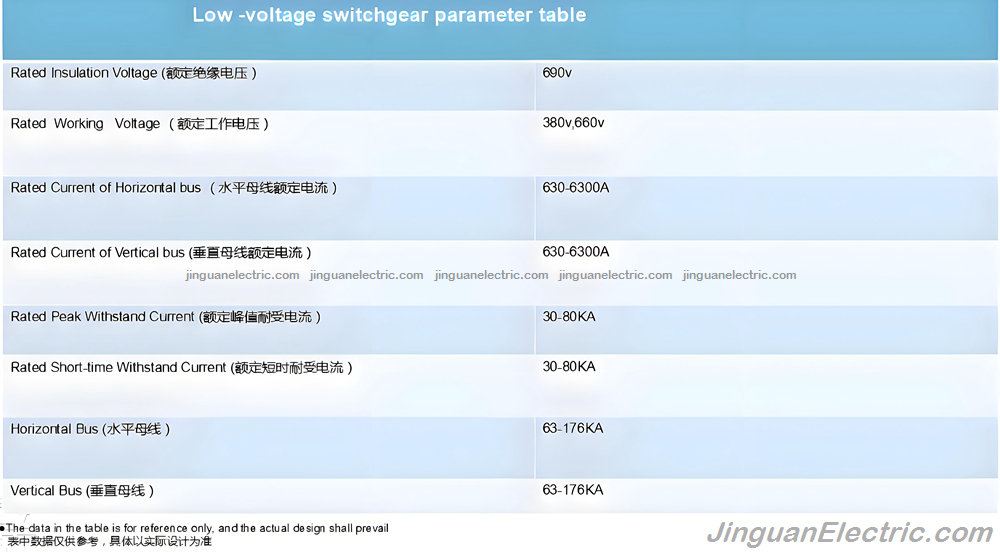

TiraThai's LV Switchgear is precision-crafted for reliability, with customizable parameters to meet specific project needs. Below is a detailed table of key specifications, validated through Jinguan Electric's certified testing and compliant with IEC 61439-1, GB/T 7251.1, and IEEE C37.20.1 standards.

These specs support altitudes up to 2000m, with full type testing for dielectric strength, thermal stability, and short-circuit performance. Custom options include harmonic filters and smart metering for advanced applications.

Applications and Real-World Performance

TiraThai's LV Switchgear is tailored for low-voltage power management across diverse sectors. In industrial facilities like manufacturing plants and petrochemical sites, it powers motors, pumps, and control systems, with GCS withdrawable units enabling rapid maintenance without downtime. Commercial buildings, including malls and office complexes, use GGD cabinets for reliable distribution to lighting and HVAC, with compact MNS designs fitting tight spaces.

Urban utilities deploy the switchgear for feeder circuits and reactive compensation, ensuring stable power in high-density areas. Data centers and hospitals benefit from intelligent monitoring and high breaking capacity, safeguarding critical loads. Renewable energy integrations, such as solar microgrids, leverage customizable configurations for efficient load management. Jinguan Electric's global deployments demonstrate 99.98% uptime, 20% installation cost savings, and MTBF exceeding 80,000 hours, ideal for resilient, scalable power networks.

Why Choose TiraThai by Jinguan Electric?

TiraThai, as Jinguan Electric's sub-brand, delivers LV switchgear excellence backed by 45+ years of innovation. Our GGD/GCS/MNS s
