Product Overview

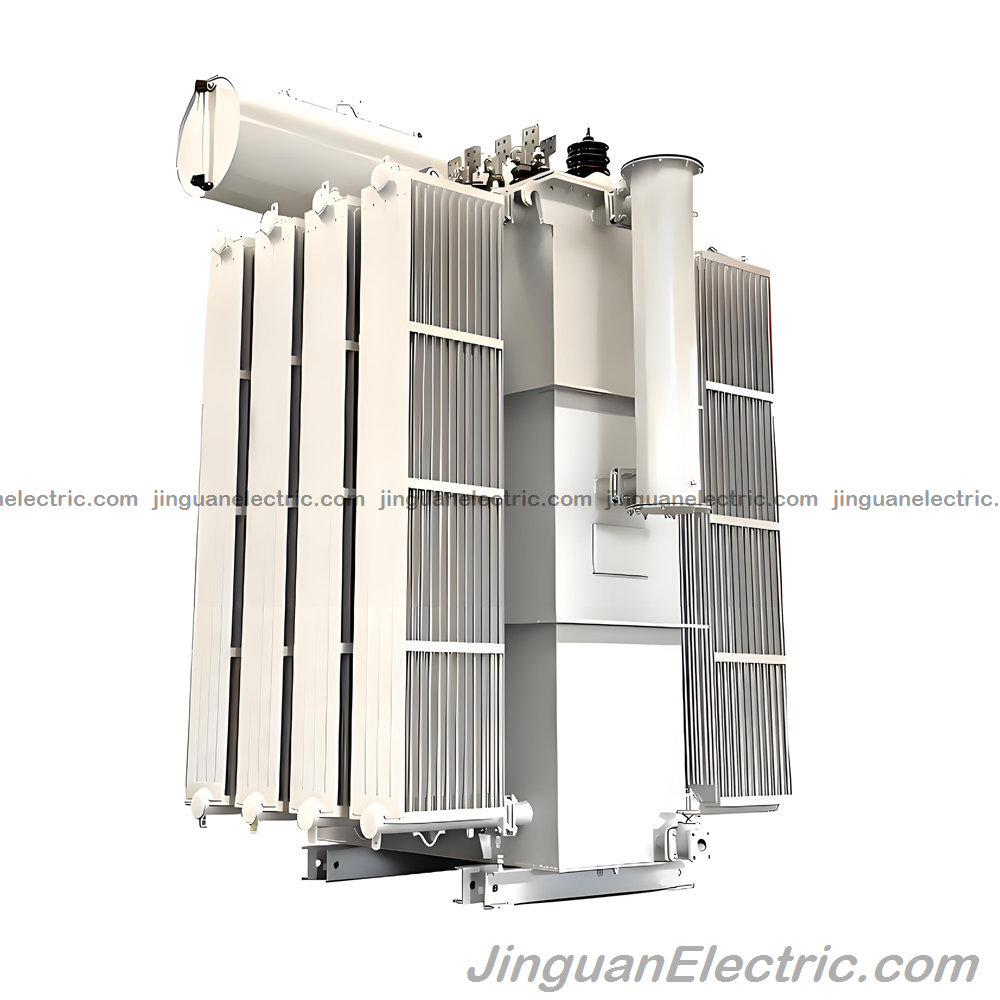

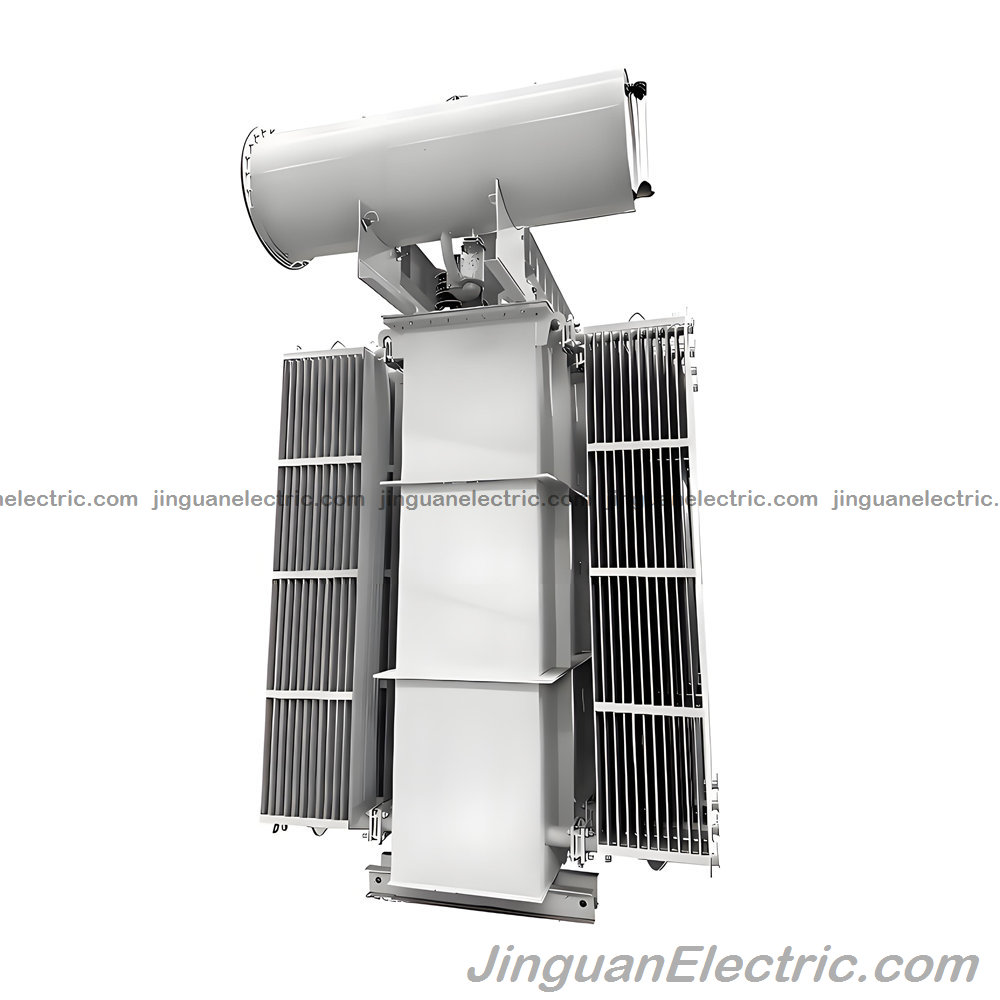

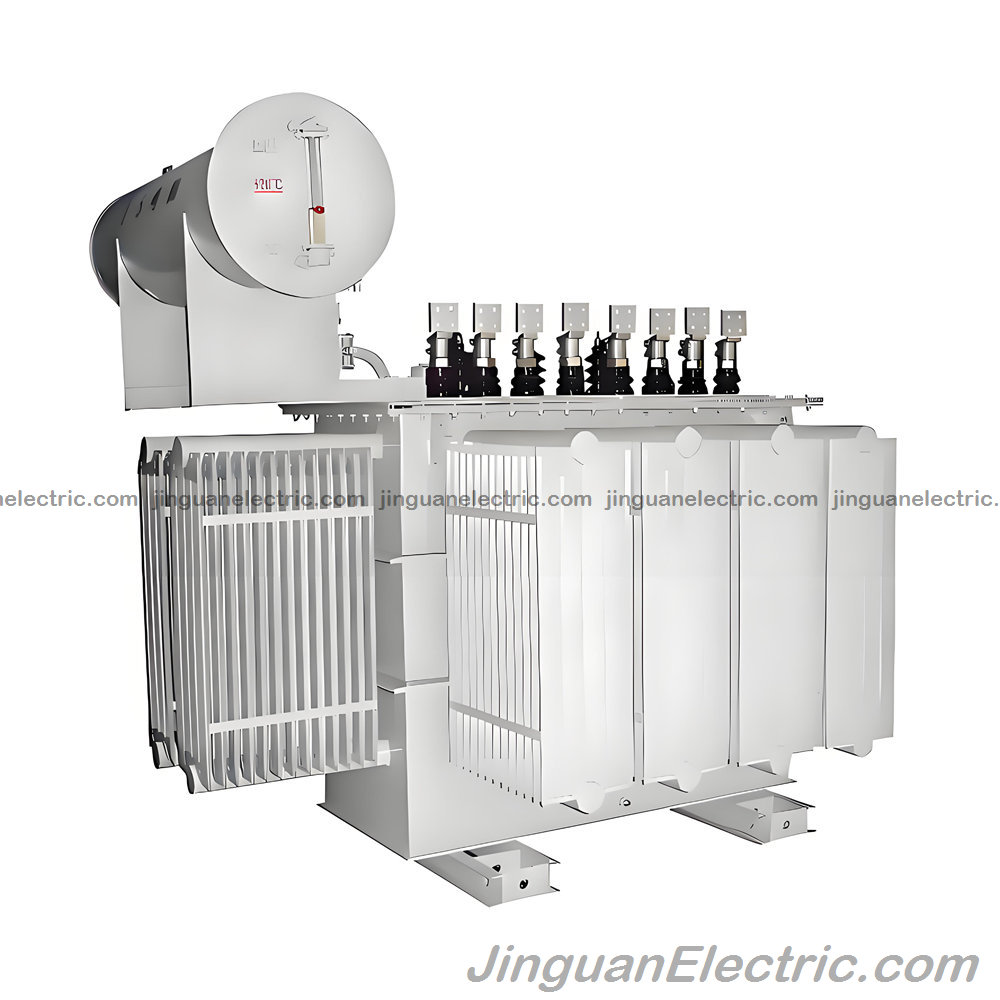

TiraThai, a specialized sub-brand of Jinguan Electric dedicated to transformer and electrical equipment innovations, proudly introduces the Rectifier Transformers, also known as Electric Furnace Transformers. These advanced units are engineered for the demanding requirements of industrial smelting and refining processes, providing reliable, high-efficiency power conversion for AC and DC furnace applications. Featuring a high-permeability silicon steel sheet iron core with a five-stage step stacking method, the Rectifier Transformers minimize no-load losses and noise while utilizing high-quality oxygen-free copper magnet wire for superior conductivity and durability.
Jinguan Electric, founded in 1979 as a high-tech enterprise in Nanyang City, Henan Province, China, has evolved from pioneering arrester manufacturing to a global leader in high-voltage transmission and distribution equipment. Embracing Industry 4.0 principles, Jinguan Electric drives core competitiveness through continuous innovation, with TiraThai serving as its premier brand for rectifier transformer solutions. This sub-brand channels Jinguan Electric's expertise into two main types: standard electric furnace transformers compliant with national standards and new energy-saving models optimized for smelting efficiency, reduced overall power consumption, and enhanced operational reliability. Certified by UL, CUL, CCC, CQC, CTQC, CE, and SGS, these transformers uphold ISO9001 (quality), ISO14001 (environmental), and ISO45001 (health & safety) management systems, ensuring exceptional performance in diverse global applications.
TiraThai's Rectifier Transformers are available in AC variants for electroslag furnaces, ladle refining furnaces, power frequency furnaces, submerged arc furnaces, steelmaking electric arc furnaces, and medium frequency induction furnaces, as well as silicon carbide and graphitizing furnaces. DC variants are also offered for specialized needs. Customizable for voltage, frequency, and regional specialties, they support seamless integration into metallurgical, chemical, and machinery workflows. TiraThai's philosophy—"dig 100 meters deep in 1 meter of space"—reflects Jinguan Electric's commitment to precision, delivering transformers that absorb advanced domestic and international technologies for convenient control, high efficiency, reliable operation, low labor intensity, strong overload capacity, and superior short-circuit resistance.
Transformer Model: Custom Rectifier Series (AC/DC Electric Furnace Types) Frequency: 50/60Hz
This versatility makes TiraThai's Rectifier Transformers indispensable for high-stakes industrial power conversion worldwide.
Key Features and Engineering Excellence
TiraThai's Rectifier Transformers are distinguished by their robust engineering, tailored for the intense demands of furnace operations. The iron core, constructed from high-permeability silicon steel sheets using a five-stage step stacking method, significantly reduces no-load losses and operational noise, enhancing overall system efficiency. High-quality oxygen-free copper magnet wire ensures low resistance, high conductivity, and excellent thermal stability, supporting continuous high-current loads without degradation.
The design incorporates advanced technologies from leading domestic and international sources, resulting in convenient control mechanisms, high efficiency ratings (>98% at full load), and reliable performance under varying conditions. Standard models adhere strictly to national standards for proven reliability, while the new energy-saving variants optimize smelting processes by improving efficiency, lowering total power consumption, and bolstering operational stability. Strong overload capacity—up to 150% short-term—prevents failures during peak melting cycles, and superior short-circuit resistance safeguards against faults in harsh industrial environments.
Jinguan Electric's automated production lines, featuring precision core stacking, vacuum insulation, and AI-driven quality inspections, guarantee defect-free assembly with customizable enclosures for weather resistance (IP54 rated). Optional features like on-load tap changers (OLTC) for voltage regulation and integrated monitoring systems enable real-time diagnostics, aligning with Industry 4.0. Compared to conventional furnace transformers, TiraThai units reduce energy costs by 15-25% and extend service life to over 30 years, with low noise (under 60dB) suiting urban-adjacent facilities.
These features not only meet but exceed IEC 60076, GB 1094, and IEEE C57 standards, providing metallurgists with a transformer that enhances productivity and sustainability.
Technical Specifications
TiraThai's Rectifier Transformers are precision-engineered for industrial reliability, with baseline specs expandable through customization. Below is a detailed table of key parameters, based on Jinguan Electric's validated testing and compliant with IEC 60076, GB 1094, and IEEE C57 standards. Exact values are tailored to furnace type (AC/DC).
Parameter | Specification Details |
---|---|
Rated Capacity (kVA) | Customizable (e.g., 1000-20000 for AC furnaces) |
Primary Voltage (kV) | Up to 35 (customizable for furnace requirements) |
Secondary Voltage (V) | High-current output (e.g., 100-1000V, customizable) |
Frequency (Hz) | 50/60 |
Core Material | High-Permeability Silicon Steel (Five-Stage Step Stacking) |
Winding Material | Oxygen-Free Copper Magnet Wire |
No-Load Loss (kW) | Optimized (20-30% below standards) |
Load Loss (kW, at 75°C) | Optimized (e.g., 5000kVA: 40) |
Impedance Voltage (%) | 6-10% (high-impedance for furnace loads) |
Insulation Class | Class A (105°C rise) |
Cooling Method | ONAN; ONAF optional for high loads |
Noise Level (dB, 1m) | ≤60 |
Enclosure Protection | IP54 (weatherproof, corrosion-resistant) |
Efficiency (%) | >98 at full load |
Short-Circuit Withstand | 50kA / 2s |
Overload Capacity | Up to 150% short-term |
Weight (tons, approx. 5000kVA) | 8-12 |
These metrics support operation in ambient temperatures from -20°C to +50°C and altitudes up to 1000m, with full type testing for thermal cycling, dielectric strength, and short-circuit resilience. Custom options include DC variants and energy-saving enhancements.
Applications and Performance Benefits
TiraThai's Rectifier Transformers are pivotal in industrial smelting and refining, powering AC furnaces for electroslag, ladle refining, power frequency, submerged arc, steelmaking EAF, and medium frequency induction processes. In metallurgy, they smelt alloy steel and ferroalloys, ensuring high-quality melts with strong overload handling. Chemical industries use them for yellow phosphorus, calcium carbide, and synthetic resin production, where reliable high-current supply minimizes downtime.
Machinery sectors deploy them for cast steel, iron, and alloy melting, while the gold industry (metallurgy) relies on them for fine steel and alloy treatment. Silicon carbide/graphitizing furnaces benefit from low-loss cores, reducing energy waste by 15-20%. Jinguan Electric's global deployments yield MTBF over 50,000 hours, 20% efficiency gains, and seamless performance in continuous operations, fostering sustainable manufacturing.
Why Choose TiraThai by Jinguan Electric?
TiraThai, as Jinguan Electric's sub-brand, delivers rectifier excellence backed by 45+ years of innovation. Our series offers high efficiency, overload resilience, and full customization, surpassing standards. With UL/CE certifications and advanced tech absorption, we ensure 25% lower costs and superior reliability for global metallurgy.
Expanded FAQ Section
How are TiraThai transformers shipped internationally? Shipped via sea, rail, or truck for global delivery. Main body in bulk packaging for stability, accessories in wooden cases to withstand transit stresses.
Can TiraThai products be customized? Yes, tailored for voltage, frequency, and furnace type through Jinguan Electric's engineering team.
What warranty do you provide? At least two years comprehensive coverage for defects, performance, and materials, with extensions available.
Is Factory Acceptance Testing (FAT) supported? Standard: Full electrical, thermal, and mechanical tests per unit, with client witnessing in-person or remotely.
Do you provide after-sales engineering support? Yes, Jinguan Electric deploys engineers for on-site installation, commissioning, troubleshooting, and audits.
What sets energy-saving models apart? Optimized for smelting efficiency, reduced power consumption, and enhanced reliability vs. standard types.
Are DC variants available? Yes, for specialized furnace applications with high-current rectification.
Certifications and Quality Assurance
TiraThai products, supplied through Jinguan Electric, hold UL, CUL, CCC, CQC, CTQC, CE, and SGS certifications, plus mandatory approvals. Systems certified to ISO9001 (quality), ISO14001 (environment), and ISO45001 (health & safety), ensuring IEC 60076, GB 1094, and IEEE C57 compliance for global excellence.
Contact Us Today
Fuel your smelting with TiraThai's Rectifier Transformers. For quotes or consultations:
- WhatsApp: +8613037600603
- Email: [email protected] or [email protected]
Our team responds within 24 hours.
