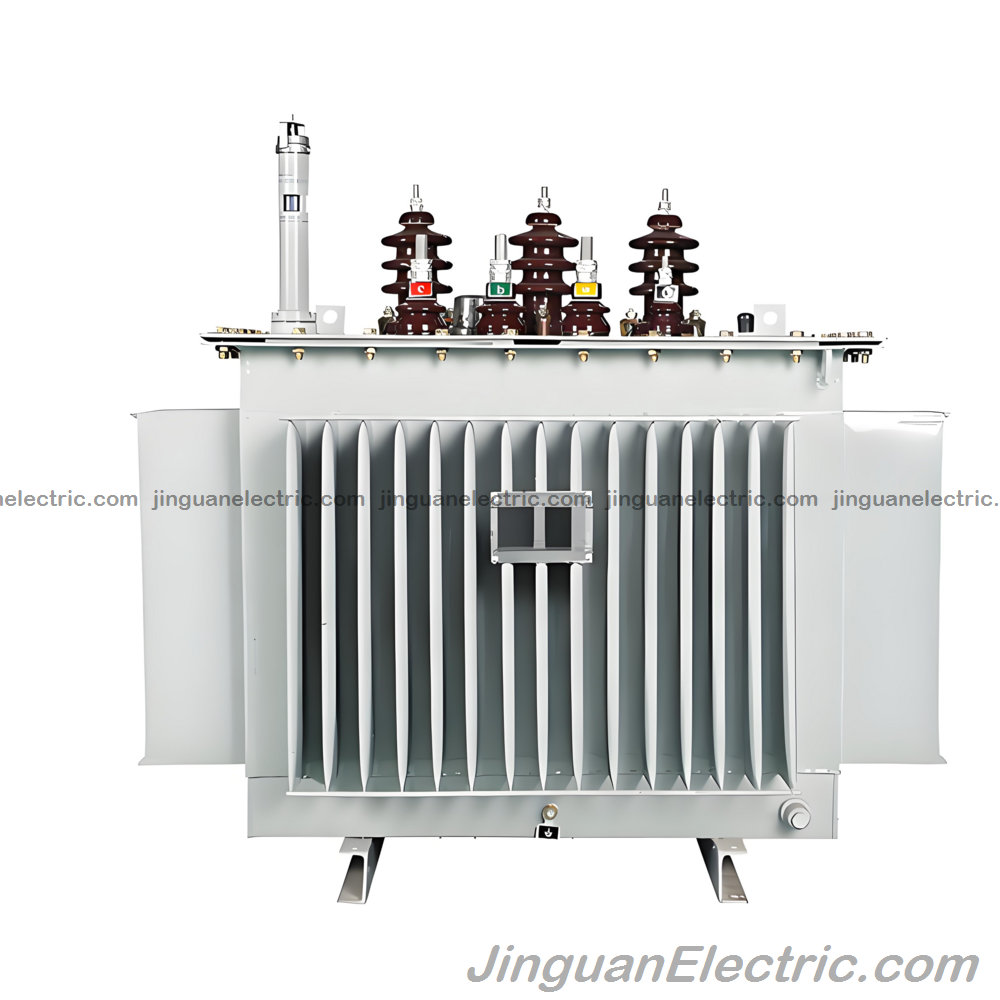

TiraThai, a specialized sub-brand of Jinguan Electric dedicated to transformer and related electrical equipment, introduces the S11 and S13 series 20kV oil-immersed distribution transformers. These robust units are essential components in power distribution networks and the supply systems of industrial and mining enterprises, ensuring stable and efficient energy delivery. Jinguan Electric, founded in 1979 as a high-tech enterprise in Nanyang City, Henan Province, China, has grown from its origins in arrester manufacturing to become a global leader in high-voltage transmission and distribution equipment. Embracing Industry 4.0 principles, Jinguan Electric focuses on innovation and core competitiveness, with TiraThai serving as its premier brand for advanced transformer solutions.
TiraThai transformers are designed to handle high-voltage demands with precision, supporting seamless integration into complex grids. They feature customizable configurations to accommodate diverse global standards, making them ideal for both urban infrastructure upgrades and remote industrial setups. Our commitment to excellence is rooted in Jinguan Electric's philosophy of "digging 100 meters deep in 1 meter of space," reflecting meticulous craftsmanship in every detail.
Transformer Model: S11 / S13 Series Primary Voltage Ratings: 15kV-22kV or Custom Secondary Voltage Ratings: 200V-440V or Custom Rated Capacity: 30-3000kVA or Custom Rated Frequency: 50/60Hz
These parameters enable tailored performance, from compact low-capacity units for localized distribution to high-capacity models for large-scale power transmission, all while prioritizing safety and longevity.
Product Advantages
TiraThai's 20kV oil-immersed transformers incorporate cutting-edge design elements that enhance reliability, efficiency, and ease of maintenance. The low-voltage windings utilize high-conductivity copper conductors, which minimize magnetization losses and improve overall magnetic flux balance. High-voltage windings adopt a multi-layer cylindrical structure, promoting uniform ampere-turn distribution, reduced magnetic leakage, superior mechanical strength, and exceptional short-circuit withstand capabilities. This construction ensures the transformer remains stable during fault conditions, protecting downstream equipment and extending operational life.

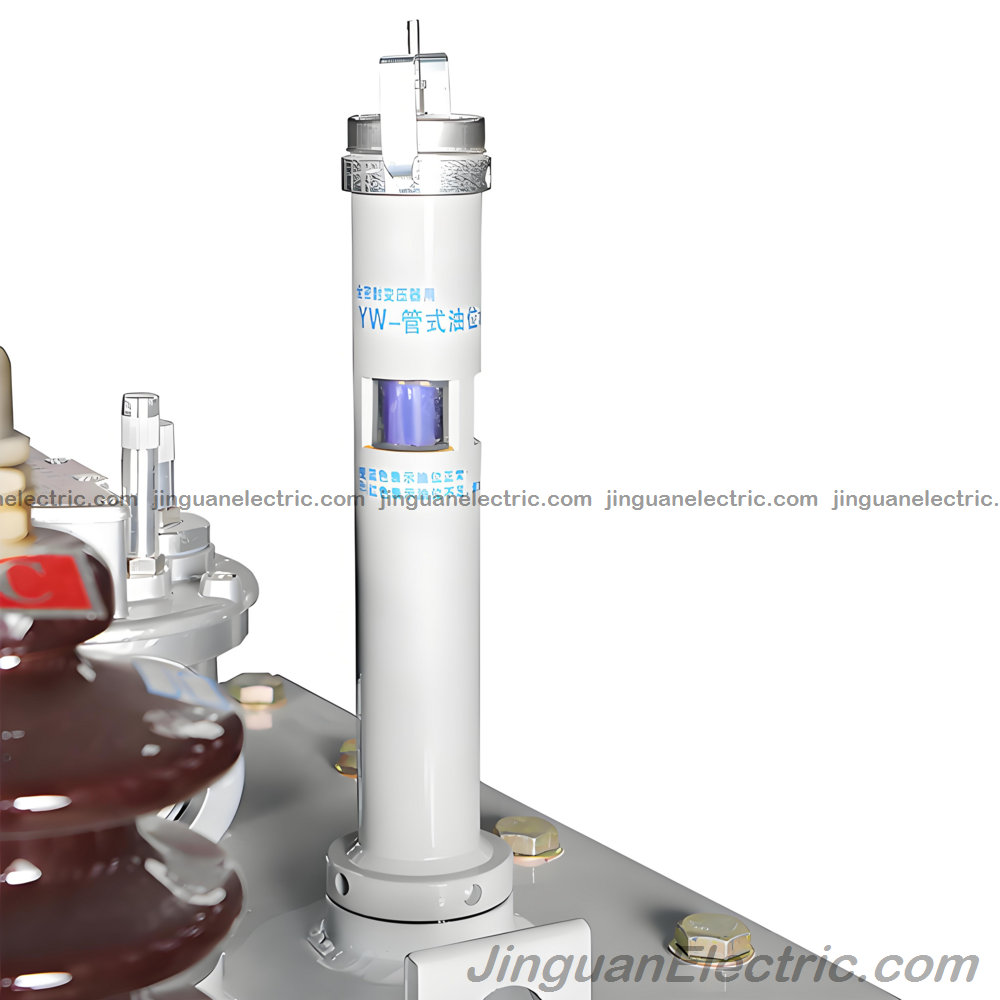

To combat environmental factors, the coils and iron core undergo vacuum drying processes, while the assembly employs vacuum oil filtration and filling techniques. This methodology drastically reduces internal moisture content, preventing insulation degradation and enhancing dielectric performance over time. The fuel tank features innovative corrugated plate technology, providing a breathing mechanism that accommodates oil volume fluctuations due to temperature variations. As a result, these transformers eliminate the need for traditional oil conservators, significantly lowering the overall height and footprint—ideal for space-constrained installations in substations or industrial facilities.

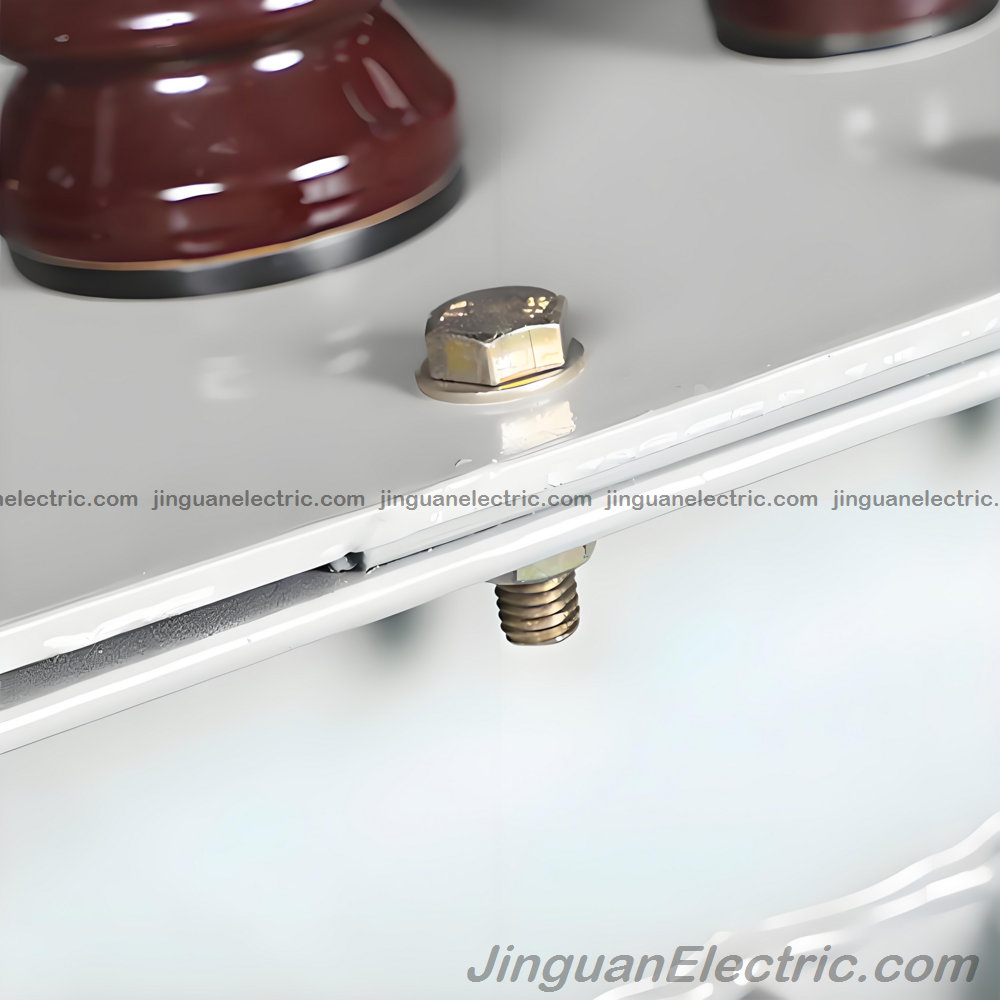

Furthermore, the corrugated design isolates the transformer oil from external contaminants, effectively barring oxygen and water ingress that could compromise insulation integrity. This sealed system not only boosts longevity but also simplifies maintenance routines, reducing downtime and operational costs. Compared to conventional designs, TiraThai models offer up to 25% better thermal management, with natural oil circulation (ONAN cooling) ensuring efficient heat dissipation even in ambient temperatures up to 50°C. Jinguan Electric's automated production ensures each unit meets rigorous tolerances, delivering consistent quality across batches.

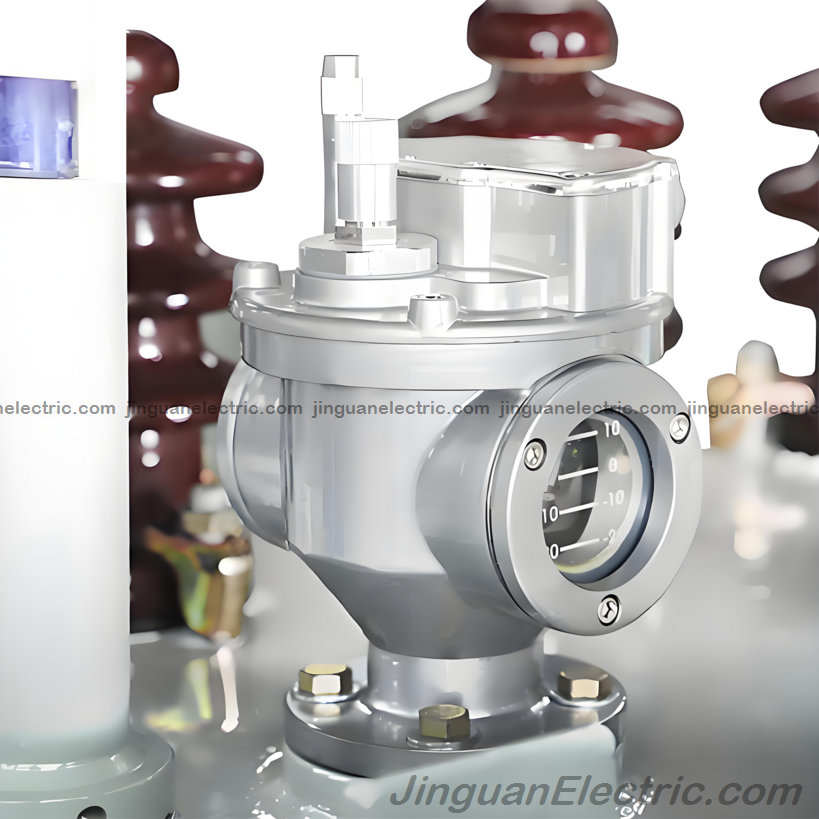

Additional advantages include enhanced seismic resistance through bolted core clamping and vibration-dampening mounts, making them suitable for earthquake-prone regions. Optional accessories like pressure relief devices and gas relays further safeguard against internal faults, aligning with TiraThai's focus on proactive safety features derived from Jinguan Electric's extensive R&D.
Technical Specifications and Standards
TiraThai 20kV oil-immersed transformers are built to the highest engineering standards, ensuring compatibility with international and regional requirements. Key specifications are outlined below, with options for customization to fit specific project needs.

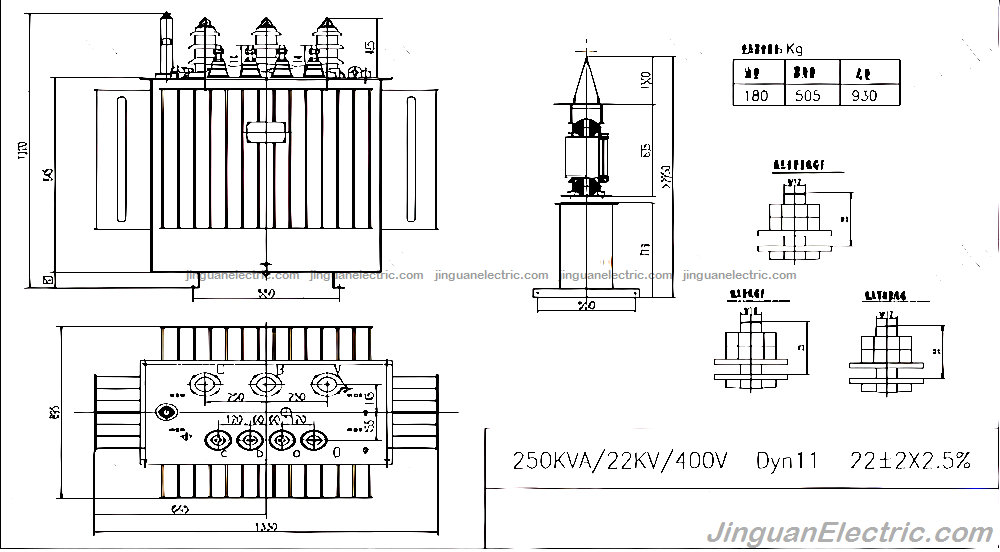

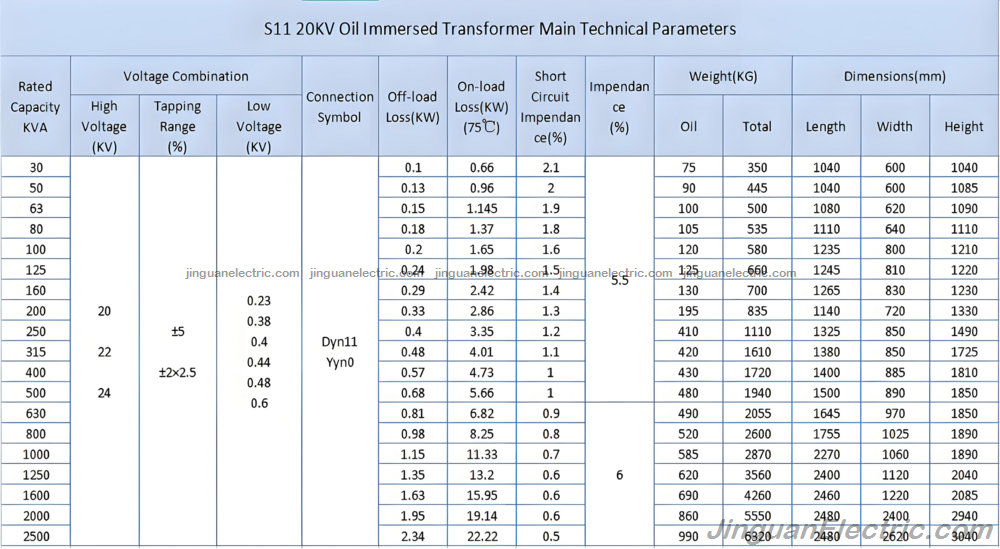

| Parameter | Specification Details |
|---|---|
| Rated Capacity (kVA) | 30-3000 (e.g., 30, 50, 100, 500, 1000, 2000) |
| Primary Voltage (kV) | 15, 20, 22 (Dyn11 vector group, customizable) |
| Secondary Voltage (V) | 200, 220, 380, 400, 440 (customizable) |
| Frequency (Hz) | 50/60 |
| Connection Symbol | Dyn11 or Yyn0 |
| Tapping Range | ±5% or ±2x2.5% (off-circuit or on-load) |
| Insulation Level | Class A (105°C rise), full/sealed types |
| Cooling Method | ONAN (Oil Natural Air Natural) |
| Impedance (%) | 4-7% (capacity-dependent) |
| No-Load Loss (W) | Reduced by 20-30% vs. predecessors |
| Load Loss (W) | Optimized with copper windings |
| Noise Level (dB) | <55 at 1m (low-vibration design) |
| Enclosure Protection | IP20 standard; IP54 optional |
Compliance with the following standards underscores our quality:
- GB 1094.1-1996 (General Rules)
- GB 1094.2-1996 (Temperature Rise)
- GB 1094.3-2003 (Insulation Levels)
- GB 1094.5-2003 (Ability to Withstand Short Circuit)
- GB/T 10237-1988 (Electronic Tube Voltage Regulators)
- GB/T 6451-2008 (Technical Parameters and Requirements)
- GB/T 7595-1987 (Transformer Oil Quality)
- JB/T 3837-2010 (Three-Phase Oil-Immersed Distribution Transformers)
- Additional: IEC 60076, IEEE C57 series
These certifications, validated through Jinguan Electric's in-house labs, guarantee performance in diverse environments, from coastal humidity to desert aridity.
Applications and Performance Benefits
The versatility of TiraThai's 20kV class oil-immersed transformers makes them indispensable across sectors. In power distribution networks, they serve as vital step-down units in medium-voltage grids, supporting reliable supply to urban substations and rural extensions. Industrial and mining enterprises benefit from their high short-circuit resistance, powering heavy machinery like crushers and conveyors without voltage fluctuations that could halt production.
For renewable energy integrations, such as offshore wind farms or solar arrays, the customizable voltage ratings ensure efficient grid synchronization, minimizing harmonic distortions. Infrastructure projects, including highways, railways, and ports, leverage their compact design and low noise for unobtrusive deployment. In petrochemical plants or steel mills, the sealed oil system resists corrosive atmospheres, maintaining efficiency amid harsh conditions.
Performance-wise, these transformers achieve energy savings of 15-25% over legacy models, translating to substantial ROI through reduced utility bills and deferred maintenance. Their extended lifespan—often 35+ years—combined with minimal oil top-ups, lowers total ownership costs. Jinguan Electric's global deployments in over 50 countries validate their adaptability, from high-altitude installations to tropical climates.
Why Choose TiraThai by Jinguan Electric?
As Jinguan Electric's sub-brand for transformer excellence, TiraThai combines specialized focus with the parent company's 45+ years of innovation. From automated winding lines to AI-driven quality checks, our processes ensure precision and scalability. We prioritize sustainability with eco-friendly oils and recyclable components, supporting global net-zero initiatives. Full lifecycle services—from design to decommissioning—foster enduring client relationships.
Expanded FAQ Section
How are TiraThai transformers shipped internationally? Transformers are transported via sea, rail, or truck for overseas delivery. The main body ships in bulk packaging for stability, while accessories are secured in wooden cases to protect against transit impacts, ensuring arrival in pristine condition.
Can TiraThai products be fully customized? Yes, we accommodate variations in voltage, frequency, enclosure types, and accessories to match regional standards and project specifics, drawing on Jinguan Electric's engineering expertise for seamless adaptations.
What warranty coverage does TiraThai provide? We offer a comprehensive two-year warranty as standard, covering manufacturing defects, performance metrics, and material integrity, with options for extended plans based on application demands.
Is Factory Acceptance Testing (FAT) available? Absolutely. FAT is routine for every unit, involving full electrical, mechanical, and thermal tests. Clients can witness or participate remotely, ensuring confidence before shipment.
Do you provide after-sales engineering support? Yes, Jinguan Electric assigns dedicated engineers for on-site installation guidance, operational training, troubleshooting, and periodic audits to optimize performance and resolve issues swiftly.
What environmental protections are incorporated? Our designs include leak-proof seals, biodegradable oil options, and low-emission materials, compliant with ISO14001, to minimize ecological impact throughout the product lifecycle.
How does TiraThai ensure compliance with global standards? Through rigorous adherence to IEC, GB, and IEEE norms, plus third-party verifications, we guarantee interoperability and safety across borders.
Certifications and Quality Assurance
All TiraThai products undergo exhaustive national type testing, including UL, CUL, CCC, CQC, CTQC, CE, and SGS certifications, alongside mandatory product approvals. Jinguan Electric maintains a robust management system encompassing ISO9001 (quality), ISO14001 (environment), and ISO45001 (occupational health), ensuring ethical and sustainable operations. This framework, audited annually, upholds our reputation for excellence in transformer manufacturing.
